MCQ a. b.

Post by answerhappygod »

MCQ
a.
Mcq A B 1
Mcq A B 1 (37.66 KiB) Viewed 45 times
b.
Mcq A B 2
Mcq A B 2 (91.65 KiB) Viewed 45 times
Mcq A B 3
Mcq A B 3 (209.93 KiB) Viewed 45 times

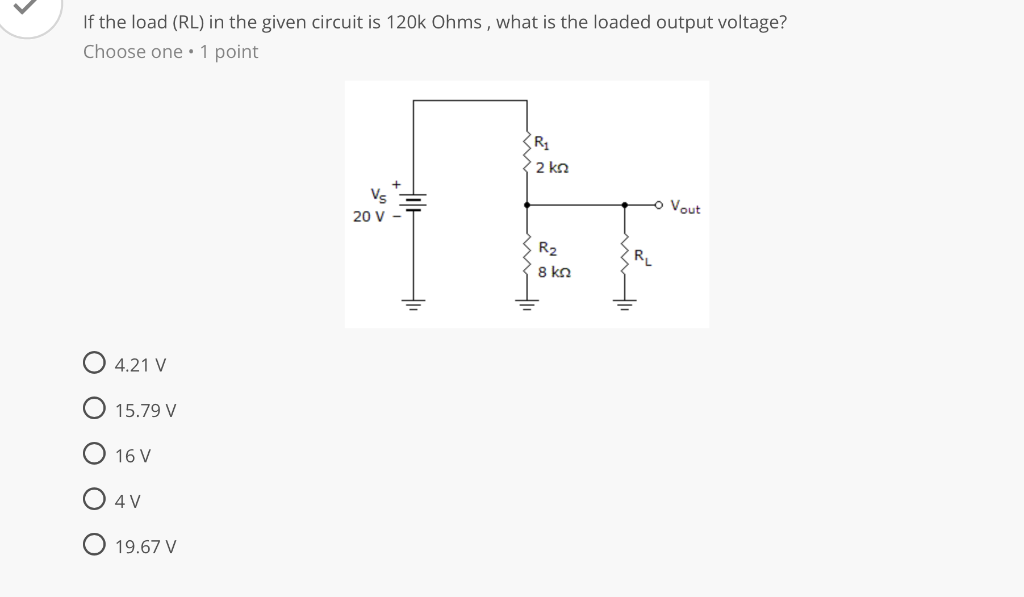

If the load (RL) in the given circuit is 120k Ohms , what is the loaded output voltage? Choose one. 1 point SR 2 k2 Vs 20 V - Vout R2 8ko 4.21 V 15.79 V 16 V 0 4V O 19.67 V

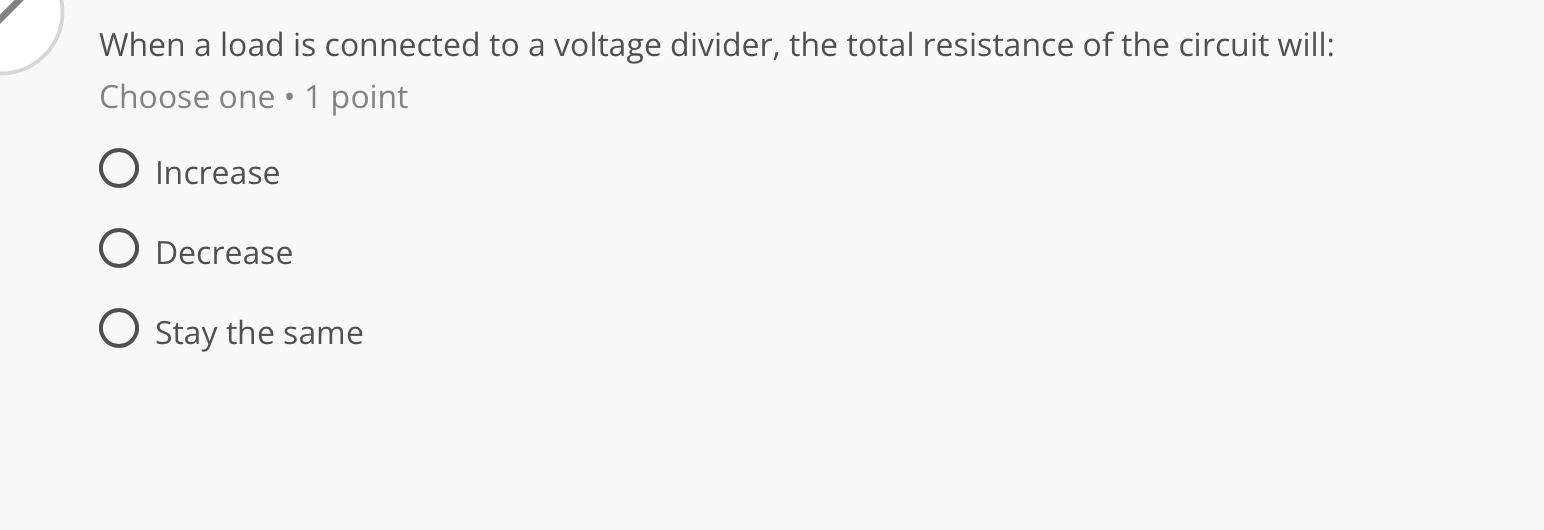

When a load is connected to a voltage divider, the total resistance of the circuit will: Choose one • 1 point . O Increase O Decrease O Stay the same

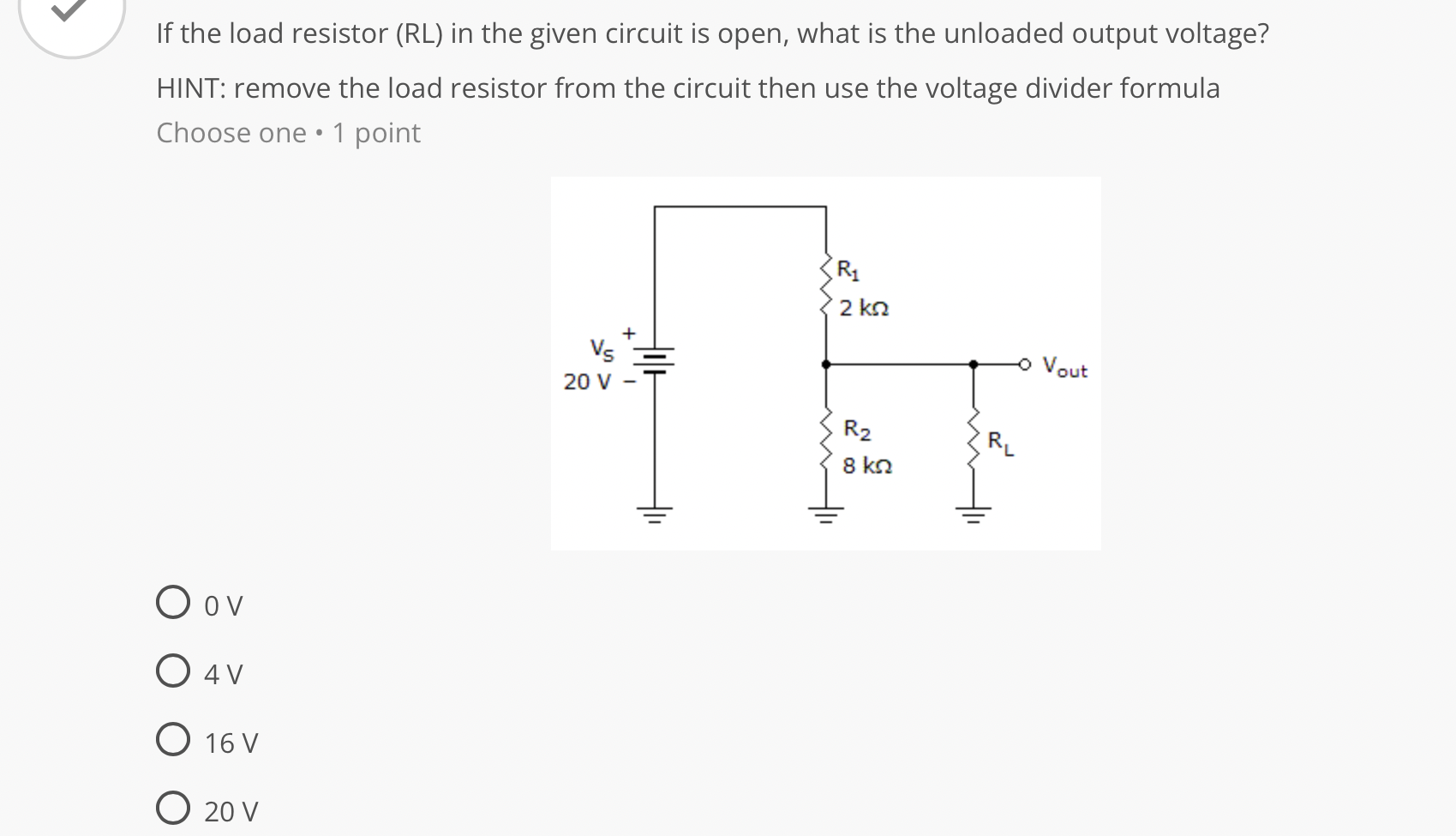

If the load resistor (RL) in the given circuit is open, what is the unloaded output voltage? HINT: remove the load resistor from the circuit then use the voltage divider formula Choose one · 1 point R1 2 km2 < ก็ - Vout 20 V R2 8 kΩ RL 1 O ov O 4 V O 16V O 20 V
