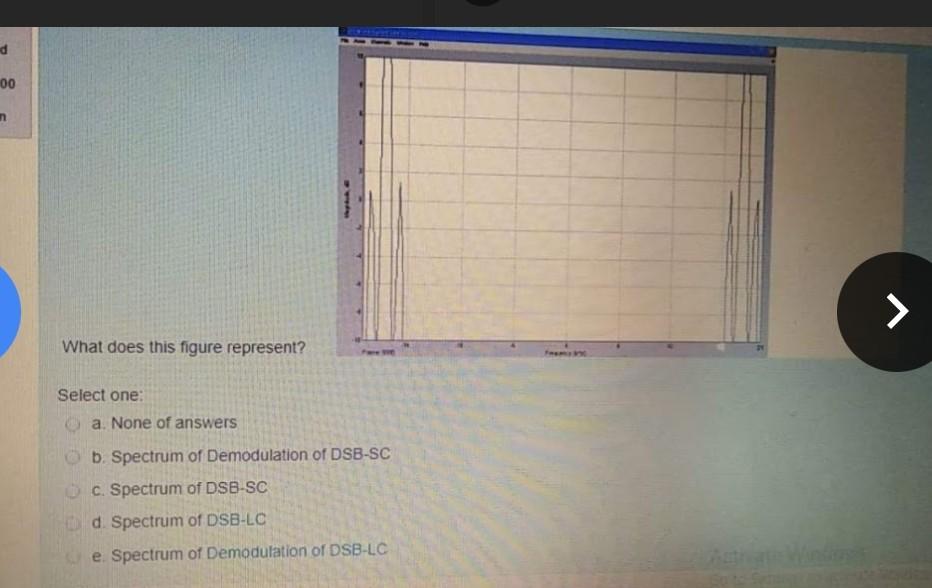

00 n > What does this figure represent? Select one: a. None of answers b. Spectrum of Demodulation of DSB-SC C. Spectrum of DSB-SC d. Spectrum of DSB-LO e Spectrum of Demodulation of DSB-LC

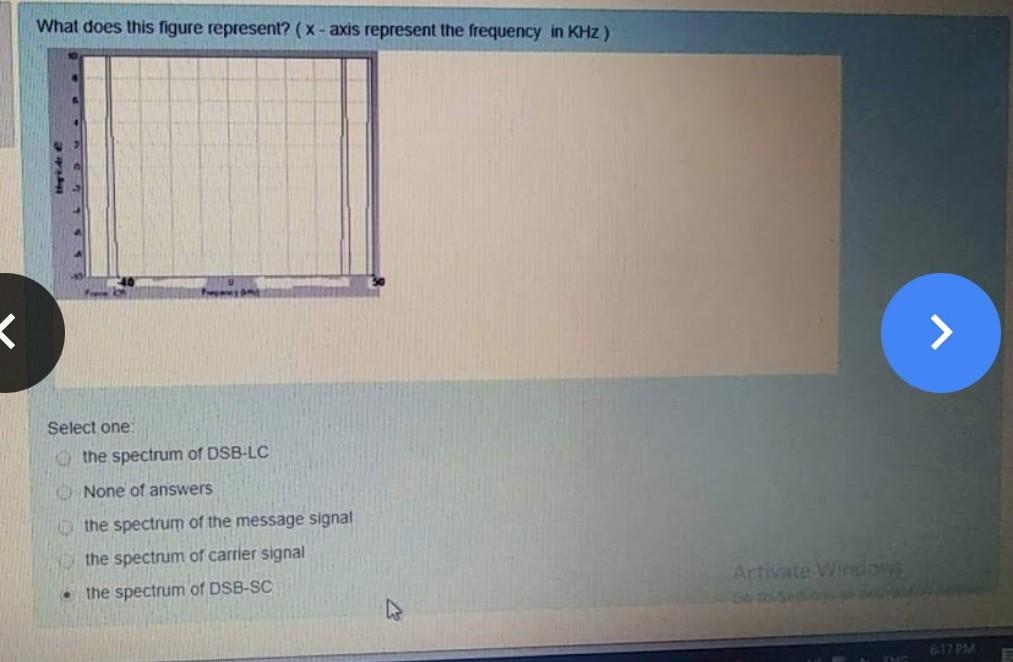

What does this figure represent? (x-axis represent the frequency in KHz) < > Select one: the spectrum of DSB-LC None of answers the spectrum of the message signal the spectrum of carrier signal • the spectrum of DSB-SC Activate Windows 171

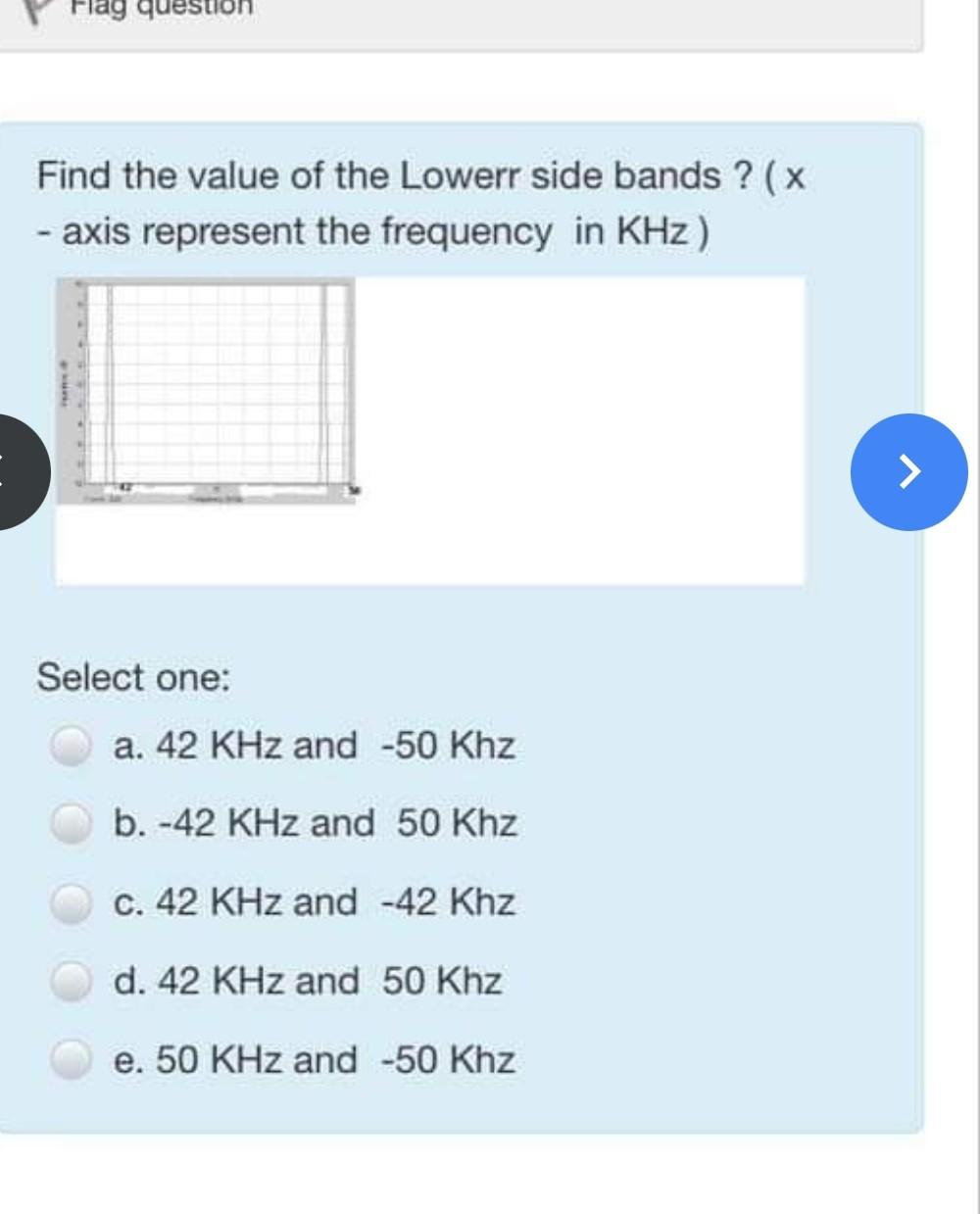

Flag question Find the value of the Lowerr side bands ? (x - axis represent the frequency in KHz) Select one: a. 42 KHz and -50 Khz b. -42 KHz and 50 Khz c. 42 KHz and -42 Khz d. 42 KHz and 50 Khz e. 50 KHz and -50 Khz

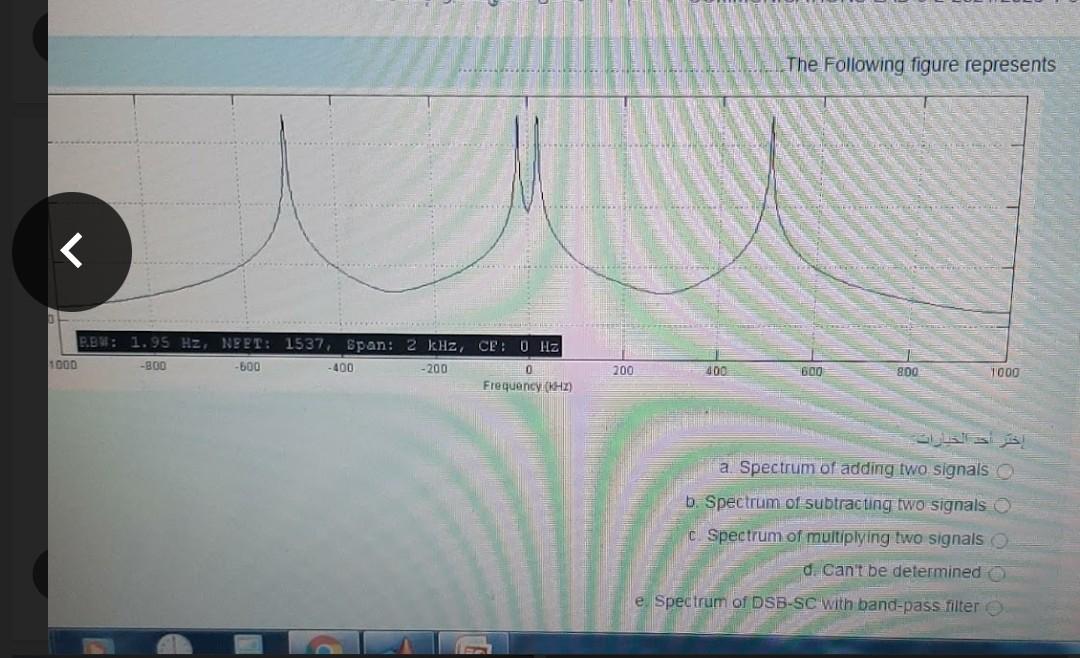

The Following figure represents < CE: 0 Hz BBM: 1.95 HzNEET: 1537Span: 2 kHz, 1000 -800 -500 -400 -200 200 400 600 800 1000 0 Frequency (KHZ) خر أحد الخ a Spectrum of adding two signals b. Spectrum of subtracting two signals c Spectrum of multiplying two signals d. Can't be determined e Spectrum of DSB-SC with band-pass filter
