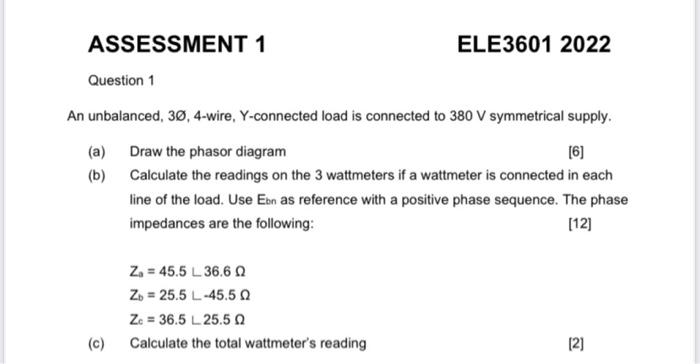

ASSESSMENT 1 ELE3601 2022 Question 1 [6] An unbalanced, 3, 4-wire, Y-connected load is connected to 380 V symmetrical supply. (a) Draw the phasor diagram (b) Calculate the readings on the 3 wattmeters if a wattmeter is connected in each line of the load. Use Ebn as reference with a positive phase sequence. The phase impedances are the following: [12] Za = 45.5 L 36.60 Zo = 25.5 L-45.50 Ze = 36.5 L 25.5 Calculate the total wattmeter's reading (c) 12]
