Q1: Given the electrical network in the figure below, do the following: 1. Find mathematically the state-space represent

[answerhappygod]

Q1 Given The Electrical Network In The Figure Below Do The Following 1 Find Mathematically The State Space Represent 1 (31.54 KiB) Viewed 38 times

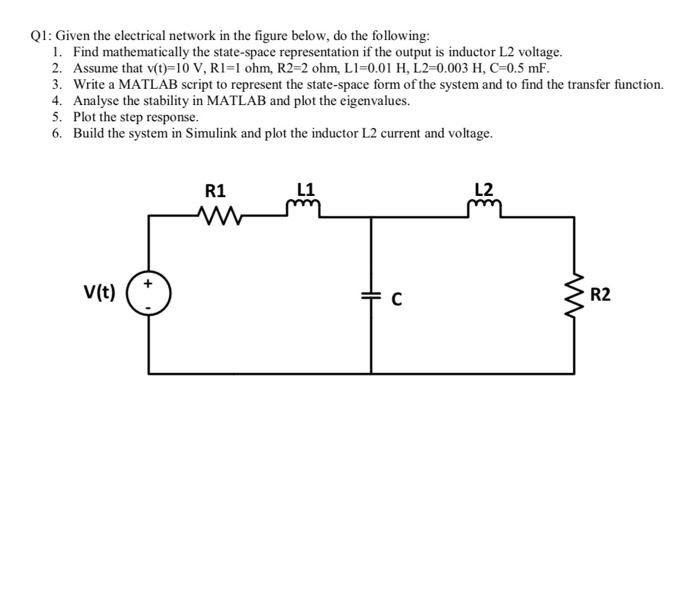

Q1: Given the electrical network in the figure below, do the following: 1. Find mathematically the state-space representation if the output is inductor L2 voltage. 2. Assume that v(t)=10 V, Ri=1 ohm, R2=2 ohm, L1=0.01 H, L2=0.003 H, C=0.5 mF. 3. Write a MATLAB script to represent the state-space form of the system and to find the transfer function. 4. Analyse the stability in MATLAB and plot the eigenvalues. 5. Plot the step response. 6. Build the system in Simulink and plot the inductor L2 current and voltage. L1 L2 R1 w w V(t) C R2
