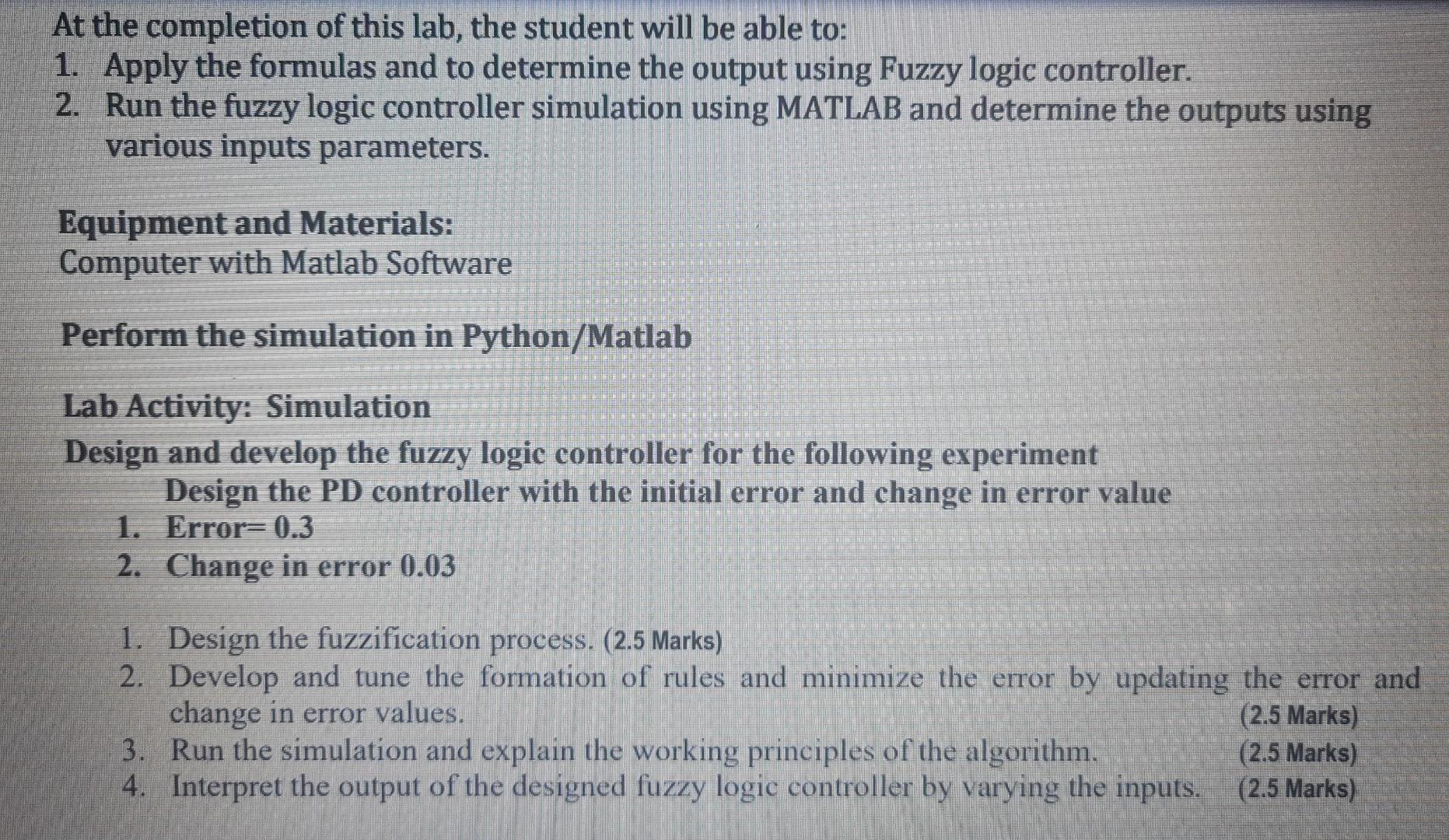

At the completion of this lab, the student will be able to: 1. Apply the formulas and to determine the output using Fuzzy logic controller. 2. Run the fuzzy logic controller simulation using MATLAB and determine the outputs using various inputs parameters. Equipment and Materials: Computer with Matlab Software Perform the simulation in Python/Matlab Lab Activity: Simulation Design and develop the fuzzy logic controller for the following experiment Design the PD controller with the initial error and change in error value 1. Error=0.3 2. Change in error 0.03 1. Design the fuzzification process. (2.5 Marks) 2. Develop and tune the formation of rules and minimize the error by updating the error and change in error values. (2.5 Marks) 3. Run the simulation and explain the working principles of the algorithm. (2.5 Marks) 4. Interpret the output of the designed fuzzy logic controller by varying the inputs. (2.5 Marks)
