The figure below displays a cross-section of a parallel-plate capacitor charged by a battery with V=14.5 V. The interior

Post by answerhappygod »

The Figure Below Displays A Cross Section Of A Parallel Plate Capacitor Charged By A Battery With V 14 5 V The Interior 1
The Figure Below Displays A Cross Section Of A Parallel Plate Capacitor Charged By A Battery With V 14 5 V The Interior 1 (76.84 KiB) Viewed 12 times

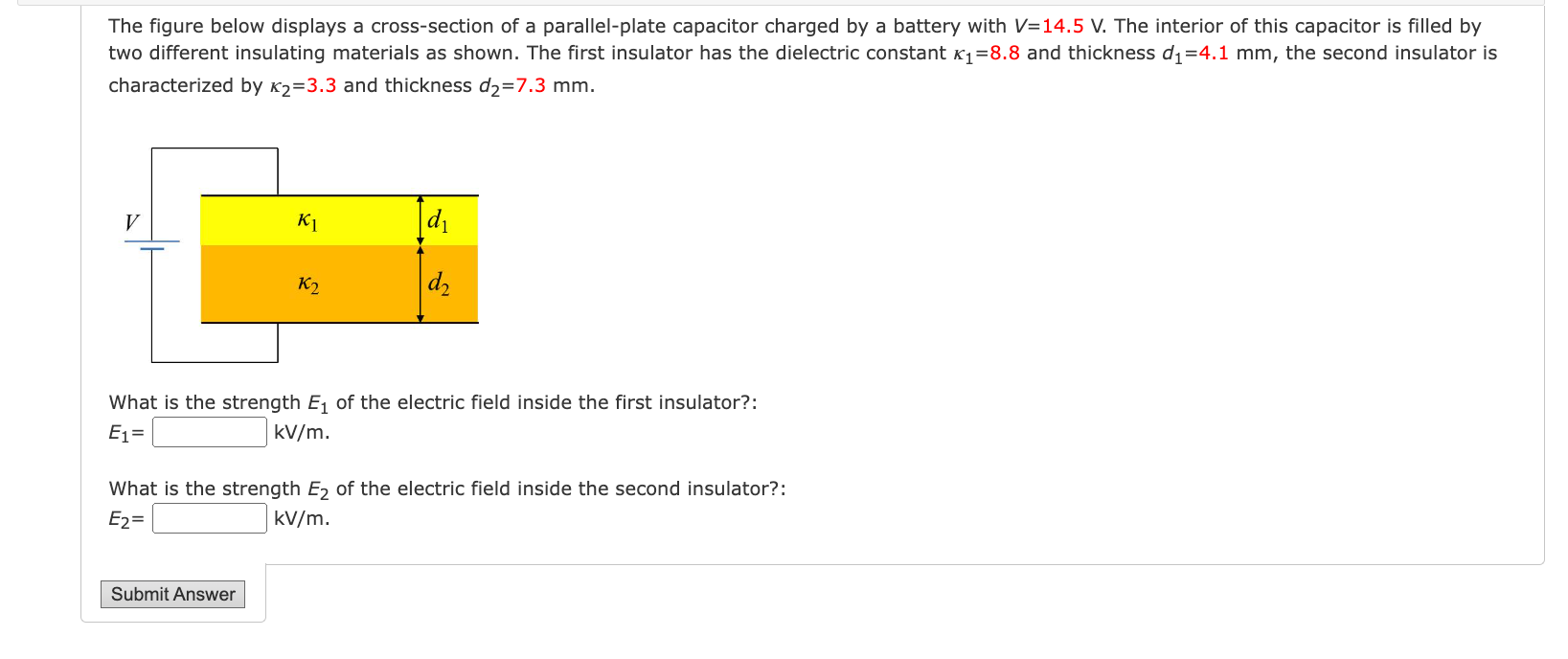

The figure below displays a cross-section of a parallel-plate capacitor charged by a battery with V=14.5 V. The interior of this capacitor is filled by two different insulating materials as shown. The first insulator has the dielectric constant x₁=8.8 and thickness d₁=4.1 mm, the second insulator is characterized by x₂=3.3 and thickness d₂=7.3 mm. V K1 K2 Submit Answer d₁ d₂ What is the strength E₁ of the electric field inside the first insulator?: E₁= kv/m. What is the strength E₂ of the electric field inside the second insulator?: E₂= kv/m.
