stion Two (5 pts) 3-bus system that consists of one generator (slack) bus and two PQ (load) busses, a were obtained: Bus

Post by answerhappygod »

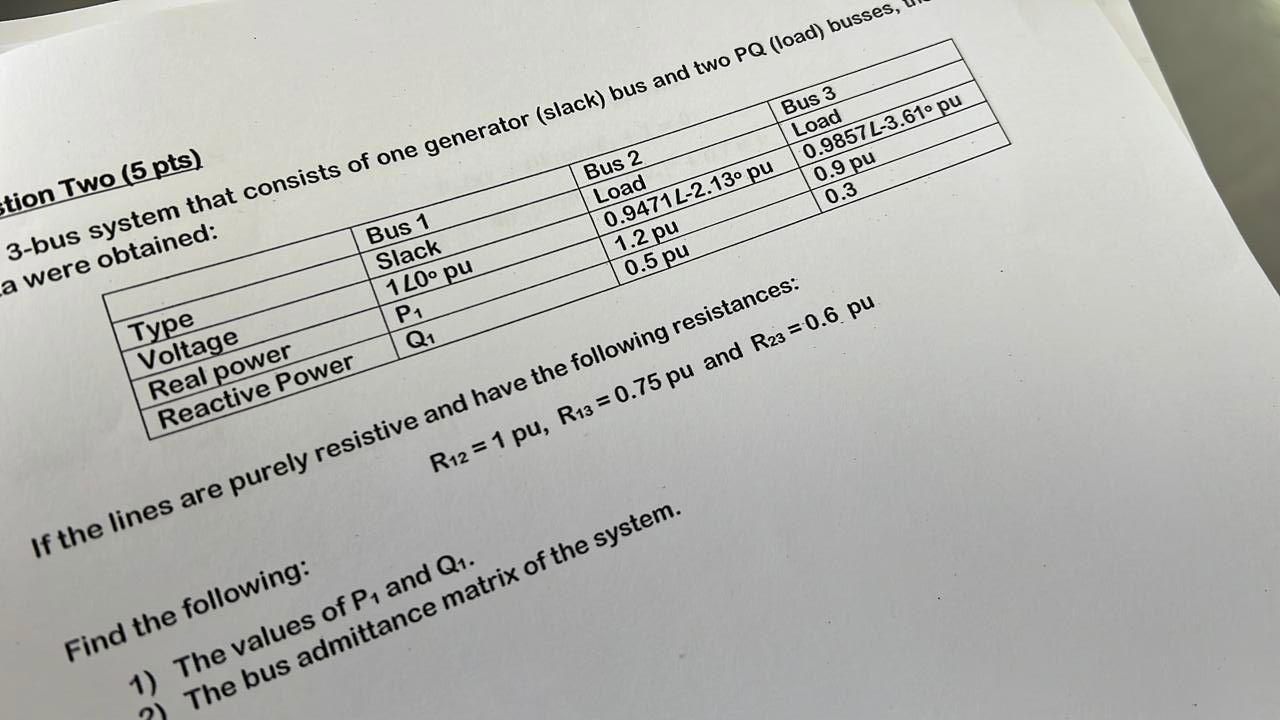

Stion Two 5 Pts 3 Bus System That Consists Of One Generator Slack Bus And Two Pq Load Busses A Were Obtained Bus 1
Stion Two 5 Pts 3 Bus System That Consists Of One Generator Slack Bus And Two Pq Load Busses A Were Obtained Bus 1 (90.76 KiB) Viewed 60 times
stion Two (5 pts) 3-bus system that consists of one generator (slack) bus and two PQ (load) busses, a were obtained: Bus 1 Bus 2 Bus 3 Slack Type Load Load 1 L0° pu Voltage 0.9857L-3.61º pu 0.9471 L-2.13º pu 0.9 pu Real power P1 1.2 pu 0.3 0.5 pu Q1 Reactive Power If the lines are purely resistive and have the following resistances: R12 = 1 pu, R13 = 0.75 pu and R23 = 0.6 pu Find the following: 1) The values of P1 and Q1. The bus admittance matrix of the system.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
