Current Attempt In Progress For What Value M Of The Clockwise Couple Will The Horizontal Component Ax Of The Pin Reactio 1 (34.38 KiB) Viewed 11 times
Please show COMPLETE solution

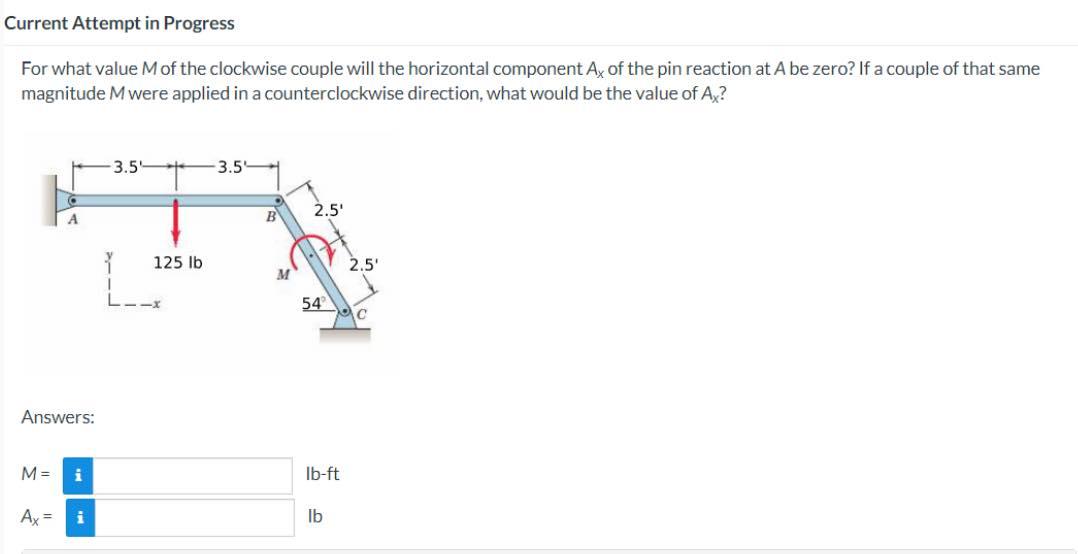

Current Attempt in Progress For what value M of the clockwise couple will the horizontal component Ax of the pin reaction at A be zero? If a couple of that same magnitude M were applied in a counterclockwise direction, what would be the value of Ax? Answers: M= i Ax= i 3.5' 125 lb -X 3.5' M 2.5' 54 lb-ft lb 2.5'
