Q5. Derive an expression for the r.m.s. load current in a single-phase resistive circuit in which the load voltage is co

Post by answerhappygod »

Q5 Derive An Expression For The R M S Load Current In A Single Phase Resistive Circuit In Which The Load Voltage Is Co 1
Q5 Derive An Expression For The R M S Load Current In A Single Phase Resistive Circuit In Which The Load Voltage Is Co 1 (22.23 KiB) Viewed 31 times

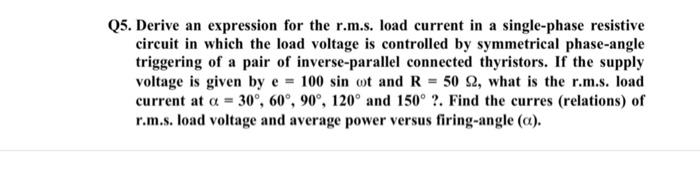

Q5. Derive an expression for the r.m.s. load current in a single-phase resistive circuit in which the load voltage is controlled by symmetrical phase-angle triggering of a pair of inverse-parallel connected thyristors. If the supply voltage is given by e = 100 sin ot and R = 50 2, what is the r.m.s. load current at a = 30°, 60°, 90°, 120° and 150° ?. Find the curres (relations) of r.m.s. load voltage and average power versus firing-angle (a).
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
