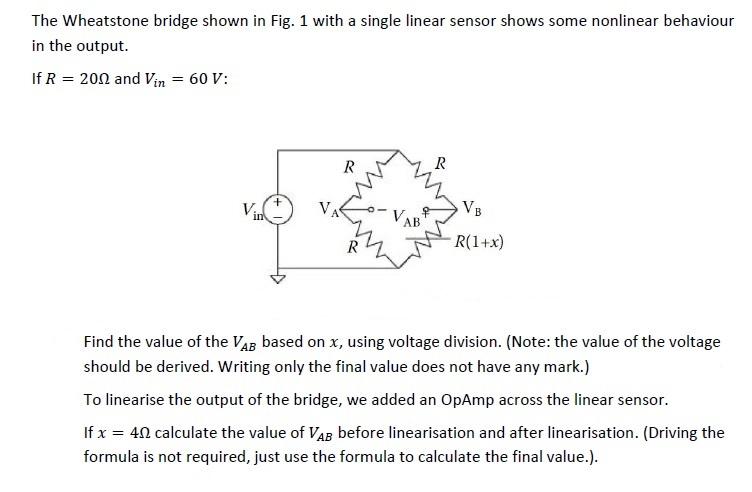

The Wheatstone bridge shown in Fig. 1 with a single linear sensor shows some nonlinear behaviour in the output If R = 20

[answerhappygod]

The Wheatstone Bridge Shown In Fig 1 With A Single Linear Sensor Shows Some Nonlinear Behaviour In The Output If R 20 1 (43.15 KiB) Viewed 36 times

The Wheatstone bridge shown in Fig. 1 with a single linear sensor shows some nonlinear behaviour in the output If R = 204 and Vin = 60 V: R R V. VA VB in AB R(1+x) Find the value of the VAB based on x, using voltage division. (Note: the value of the voltage should be derived. Writing only the final value does not have any mark.) To linearise the output of the bridge, we added an OpAmp across the linear sensor. If x = 41 calculate the value of Vad before linearisation and after linearisation. (Driving the formula is not required, just use the formula to calculate the final value.).
