2. Consider the following drawing. The right hand side shows a complete view of a loop in the magnetic circuit. Consider

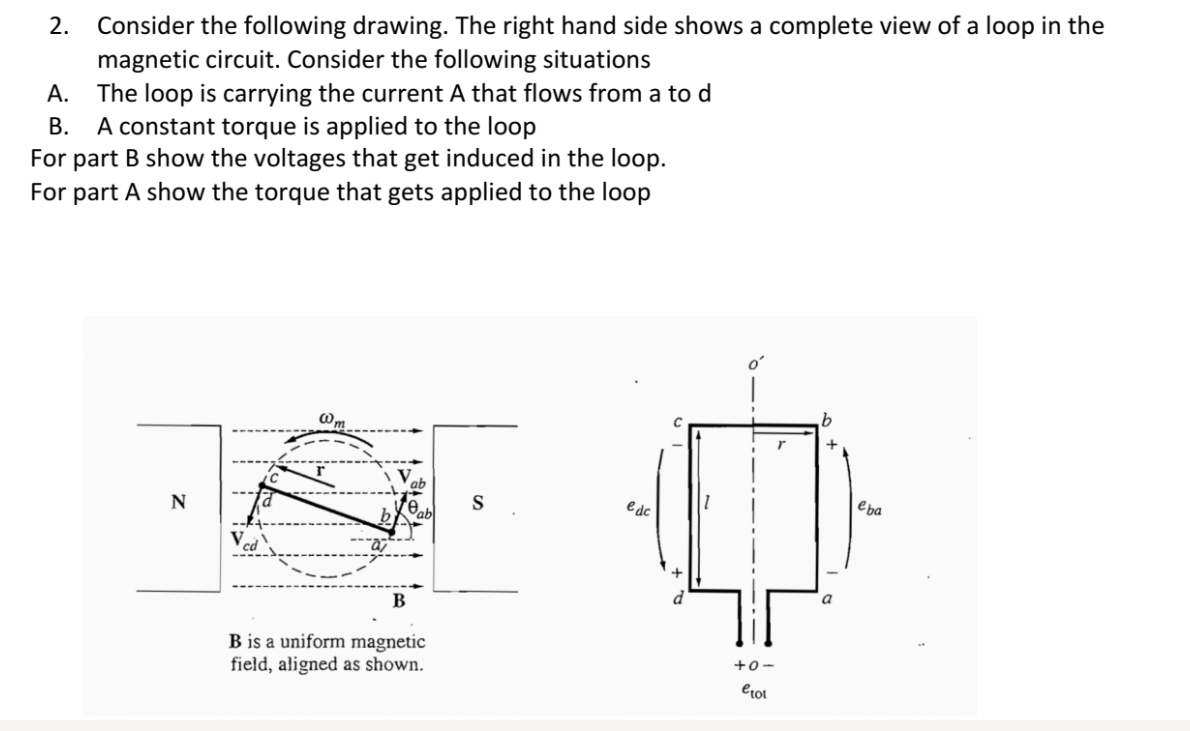

2. Consider the following drawing. The right hand side shows a complete view of a loop in the magnetic circuit. Consider the following situations A. The loop is carrying the current A that flows from a to d B. A constant torque is applied to the loop For part B show the voltages that get induced in the loop. For part A show the torque that gets applied to the loop Om + N S edc eba B B is a uniform magnetic field, aligned as shown. +0- etot
