Shown in the figure below is a system of three masses. Two of these masses are hanging and one is on the table. The stri

[answerhappygod]

Shown In The Figure Below Is A System Of Three Masses Two Of These Masses Are Hanging And One Is On The Table The Stri 1 (27.16 KiB) Viewed 8 times

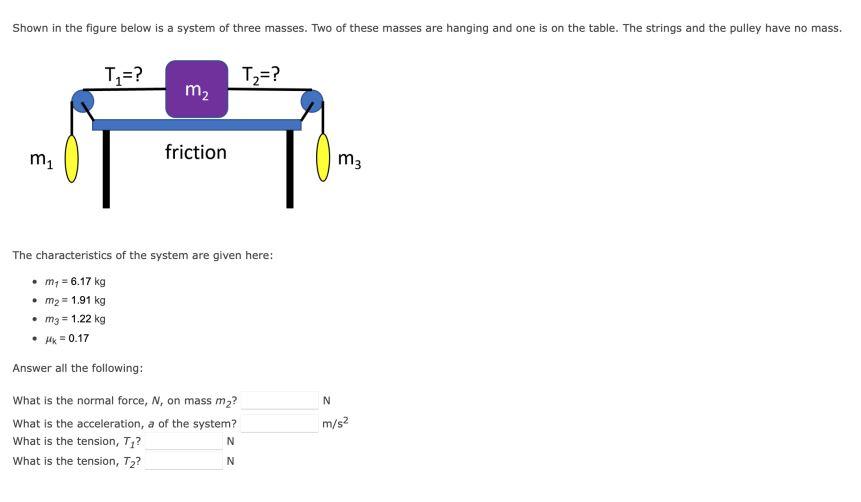

Shown in the figure below is a system of three masses. Two of these masses are hanging and one is on the table. The strings and the pulley have no mass. m₁ T₁=? m₂ friction T₂=? The characteristics of the system are given here: • m₁ = 6.17 kg • m₂ = 1.91 kg • mg = 1.22 kg • Mk = 0.17 Answer all the following: What is the normal force, N, on mass m₂? What is the acceleration, a of the system? What is the tension, T₁? N What is the tension, T₂? N m3 N m/s²
