Q12 The battery in the figure provides an electrical voltage of 10 V and has an unknown internal resistance r. When the

Post by answerhappygod »

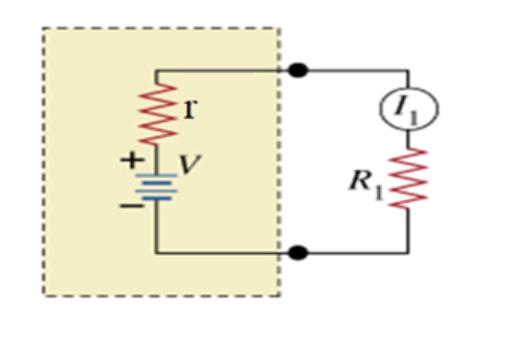

Q12The battery in the figure provides an electrical voltage of 10 Vand has an unknown internal resistance r. When the battery isconnected to a resistor R₁=9Ω, the current in the circuit isI₁=1A.Find the internal resistance r of the battery.
Q12 The Battery In The Figure Provides An Electrical Voltage Of 10 V And Has An Unknown Internal Resistance R When The 1
Q12 The Battery In The Figure Provides An Electrical Voltage Of 10 V And Has An Unknown Internal Resistance R When The 1 (73.48 KiB) Viewed 9 times
