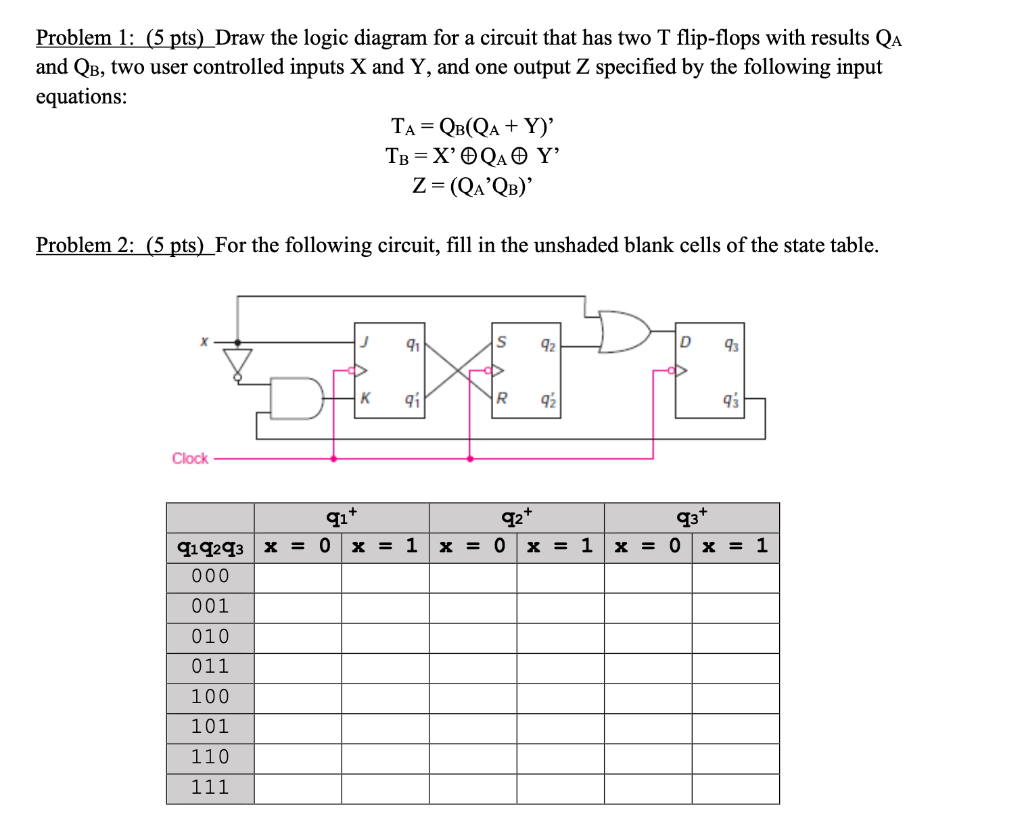

Problem 1 5 Pts Draw The Logic Diagram For A Circuit That Has Two T Flip Flops With Results Qa And Qb Two User Contr 1 (100.29 KiB) Viewed 25 times
Q1 and Q2 both please???
Problem 1: (5 pts) Draw the logic diagram for a circuit that has two T flip-flops with results QA and QB, two user controlled inputs X and Y, and one output Z specified by the following input equations: Ta=QB(QA + Y)' TB = X'OQA Y' Z= (QA'QB)' Problem 2: (5 pts) For the following circuit, fill in the unshaded blank cells of the state table. 91 S 92 D 93 502 K 91 R 93 Clock 22* + x = 0 x = 1 93 + x = 0 X = 1 qı* 919293 x = 0 X = 1 000 001 010 011 100 101 110 111
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
