PLEASE DO NOT ROUND OFF ON SOLUTION AND FINAL ANSWER. THANK YOU! A pin-connected truss is loaded and supported as shown

Post by answerhappygod »

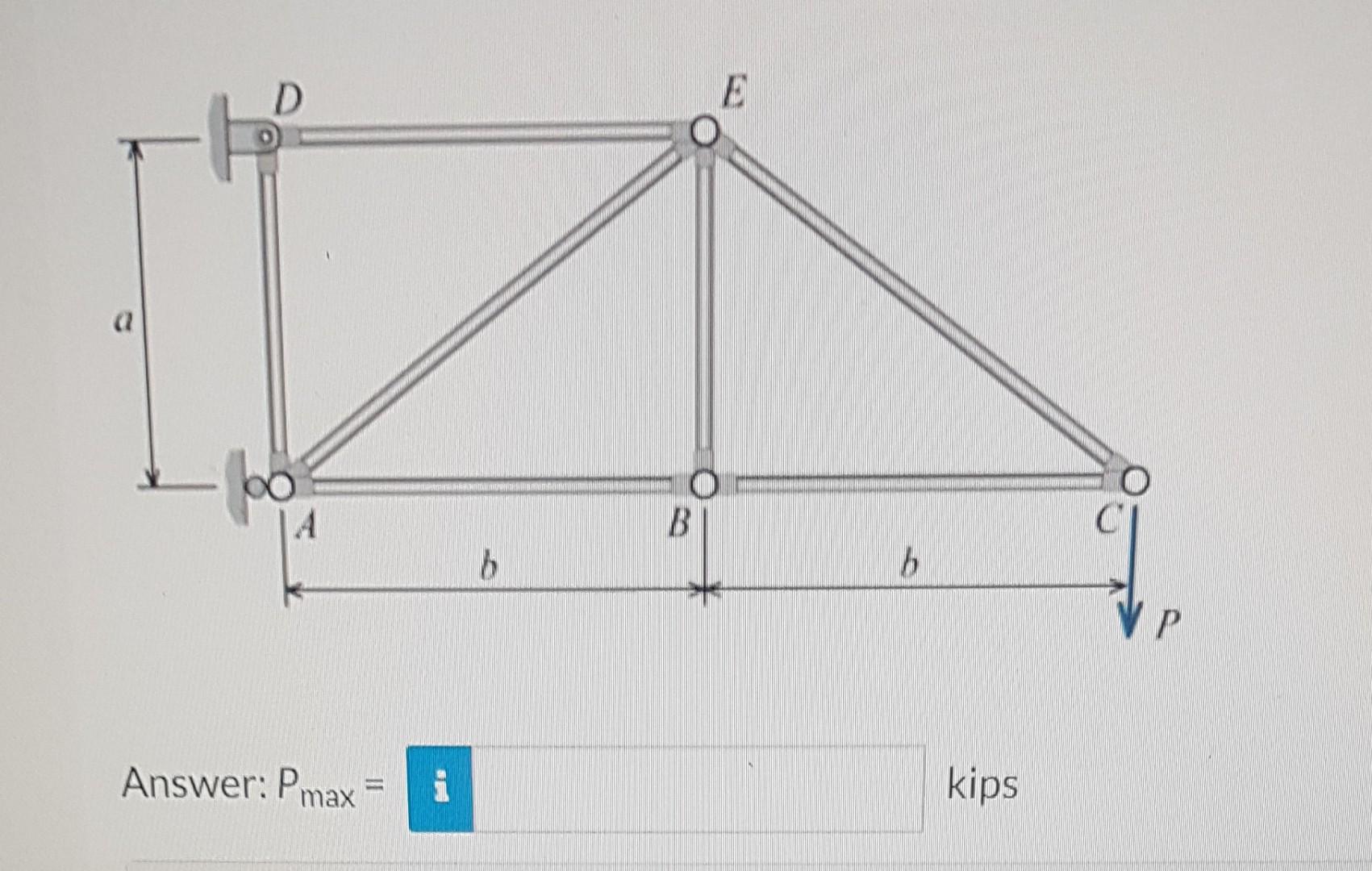

PLEASE DO NOT ROUND OFF ON SOLUTION AND FINAL ANSWER. THANK YOU! A pin-connected truss is loaded and supported as shown. Each aluminum member has a cross-sectional area of A=2.6 in^2. Assume a=3.50 ft and b=4.20ft. If the normal stress in each member must not exceed 60ksi, determine the maximum load Pmax that may be supported by the structure.
Please Do Not Round Off On Solution And Final Answer Thank You A Pin Connected Truss Is Loaded And Supported As Shown 1
Please Do Not Round Off On Solution And Final Answer Thank You A Pin Connected Truss Is Loaded And Supported As Shown 1 (222.84 KiB) Viewed 12 times
D A Answer: Pmax b O B E b kips O C P
