Determine The Force In Each Member Of The Loaded Truss All Triangles Are 3 4 5 Enter A Positive Number If The Member I 1 (233.62 KiB) Viewed 12 times

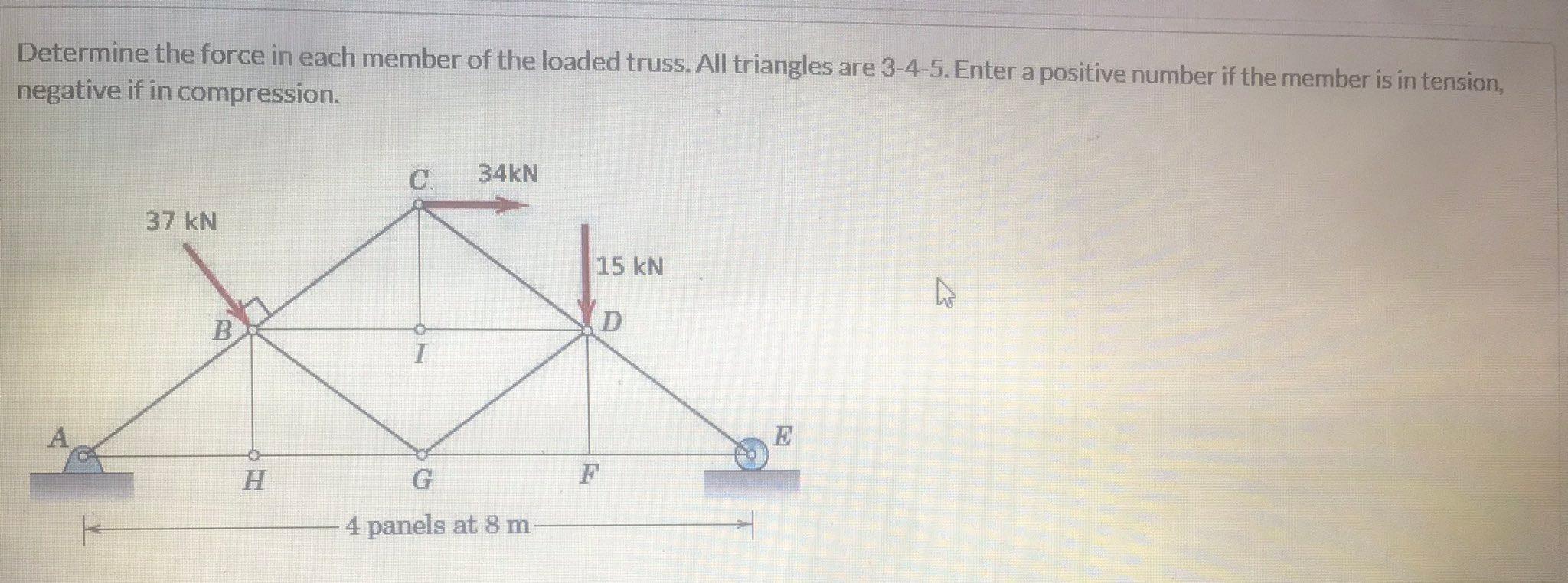

Determine the force in each member of the loaded truss. All triangles are 3-4-5. Enter a positive number if the member is in tension, negative if in compression. 37 kN B H C I 34KN 4 panels at 8 m 15 KN F D E D
There are still six more forces that we need to solve for. Continue to examine the remaining joints. Draw a Free-Body diagram for each joint and solve for the following forces. Answers: AB= AH = BG= BI= FG = GH = #PE *** i pla 1 影资理 ! kN ! kN kN kN kN KN E
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
