A. In the circuit below, identify which source is the differential input and which one is the common input. In each case write the expression of the source signal as vi(t) = A cos(wt+theta) where w=2*pi*f for each source. Which source has the dominant' or larger input amplitude? The common input or the differential input?

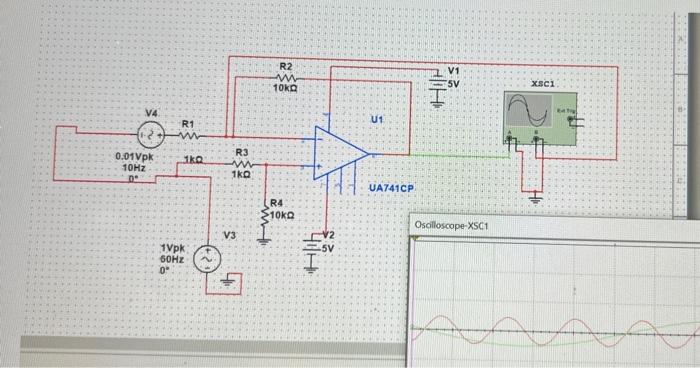

R2 w 10kg ** V1 5V xsci V4 U1 R1 w R3 1ka 0.01 Vpk 10Hz 09 w 1kg UA741CP H R4 100 Oscilloscope-XSC1 V3 1 VPK 60HZ 0 Hill
