Question A2 [10 marks] L. 14 A uniform beam with a mass of 7 kg and a length of 2.8 m is hinged at its lower end, and a

[answerhappygod]

Question A2 10 Marks L 14 A Uniform Beam With A Mass Of 7 Kg And A Length Of 2 8 M Is Hinged At Its Lower End And A 1 (44.29 KiB) Viewed 25 times

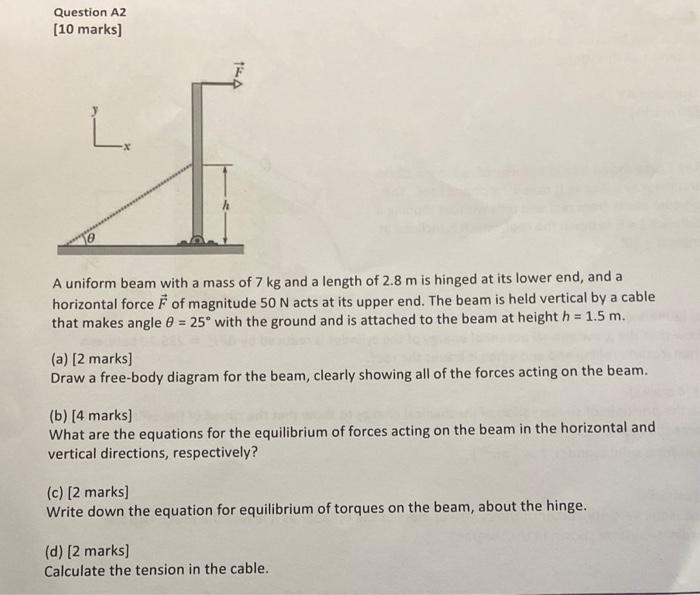

Question A2 [10 marks] L. 14 A uniform beam with a mass of 7 kg and a length of 2.8 m is hinged at its lower end, and a horizontal force F of magnitude 50 N acts at its upper end. The beam is held vertical by a cable that makes angle 8 = 25° with the ground and is attached to the beam at height h = 1.5 m. (a) [2 marks] Draw a free-body diagram for the beam, clearly showing all of the forces acting on the beam. (b) [4 marks] What are the equations for the equilibrium of forces acting on the beam in the horizontal and vertical directions, respectively? (c) [2 marks] Write down the equation for equilibrium of torques on the beam, about the hinge. (d) [2 marks] Calculate the tension in the cable.
