The offset slider crank mechanism is given below. Find position and velocity of the slider. Determine also the angular v

Post by answerhappygod »

The Offset Slider Crank Mechanism Is Given Below Find Position And Velocity Of The Slider Determine Also The Angular V 1
The Offset Slider Crank Mechanism Is Given Below Find Position And Velocity Of The Slider Determine Also The Angular V 1 (70.53 KiB) Viewed 45 times

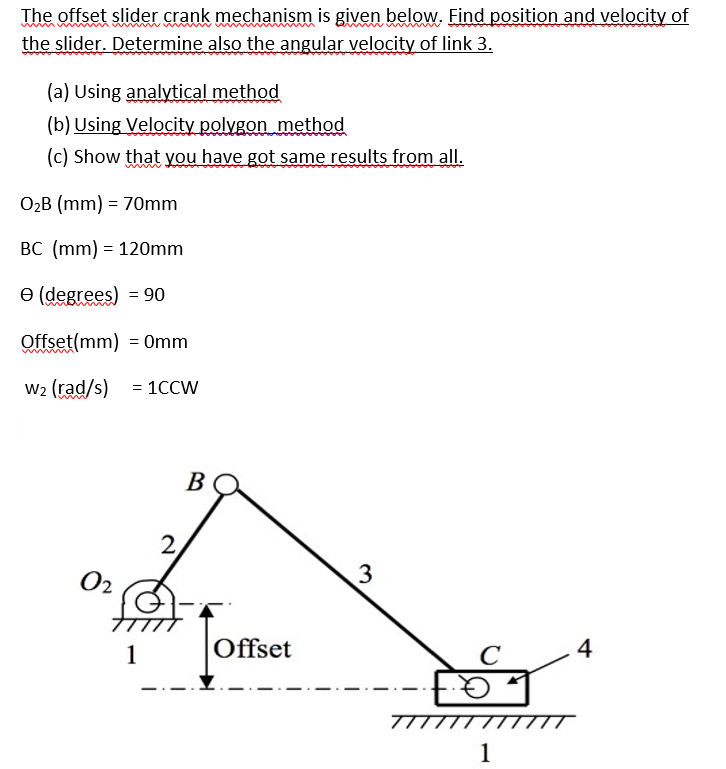

The offset slider crank mechanism is given below. Find position and velocity of the slider. Determine also the angular velocity of link 3. (a) Using analytical method (b) Using Velocity polygon method (c) Show that you have got same results from all. O2B (mm) = 70mm BC (mm) = 120mm e (degrees) = 90 Offset(mm) = Omm w2 (rad/s) = 1CCW B 2 02 3 1 Offset 4 1
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
