A 100 Kg Uniform Beam That Is 6m Long Is Loosely Pinned At The Pivot P And Is Supported By A 4m Long Cable A 600 Kg Blo 1 (174.15 KiB) Viewed 12 times

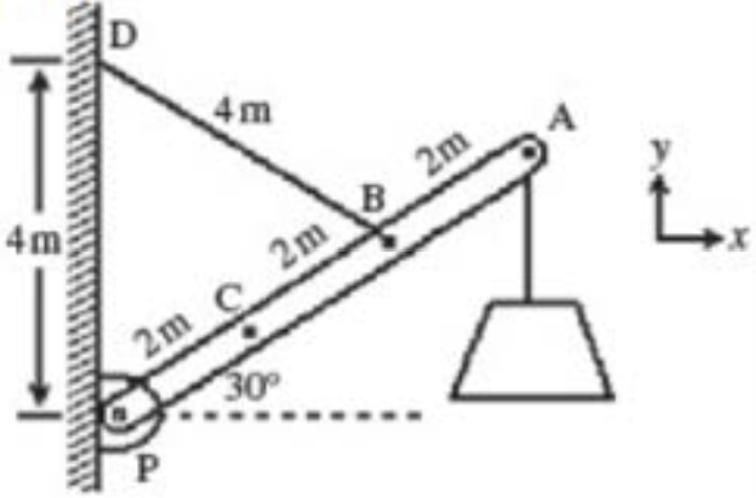

A 100 kg uniform beam that is 6m long is loosely pinned at thepivot P and is supported by a 4m long cable. A 600 kg block issuspended from the end of the beam at A. What is the torqueproduced by the hinge forces at P?
-2933 Nm
+9840 Nm
-4044 Nm
none of the above
A 100 kg uniform beam that is 6m long is loosely pinned at thepivot P and is supported by a 4m long cable. A 600 kg block issuspended from the end of the beam at A. What is the weight of thesuspended block?
Group of answer choices
4540 N
6630 N
7656 N
5880 N
4m —— 4m P B 2m 2m 2m C 30⁰° X
