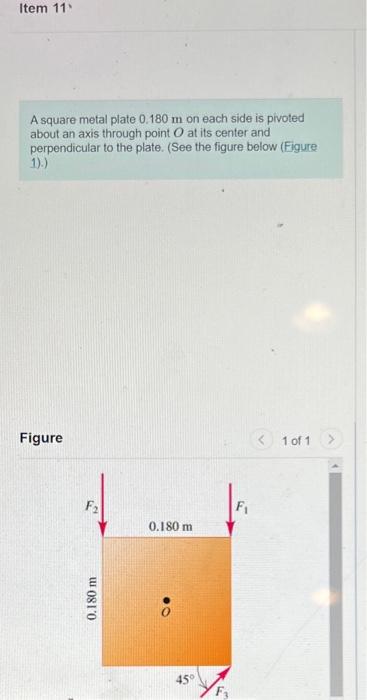

Item 11 A square metal plate 0.180 m on each side is pivoted about an axis through point O at its center and perpendicular to the plate. (See the figure below (Figure 1).) Figure F₂ 0.180 m 0.180 m 45° 1 of 1

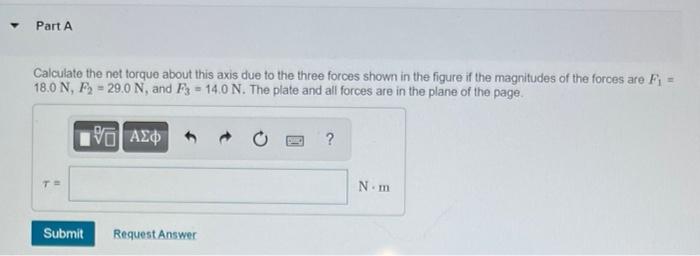

Part A Calculate the net torque about this axis due to the three forces shown in the figure if the magnitudes of the forces are F₁ = 18.0 N, F₂ = 29.0 N, and F3 = 14.0 N. The plate and all forces are in the plane of the page. G| ΑΣΦ Submit Request Answer ? N-m
