Question No. 1 (a) Four workstations, 1, 2, 3, and 4, have been assigned to a work cell. An analysis of 50 parts process

[answerhappygod]

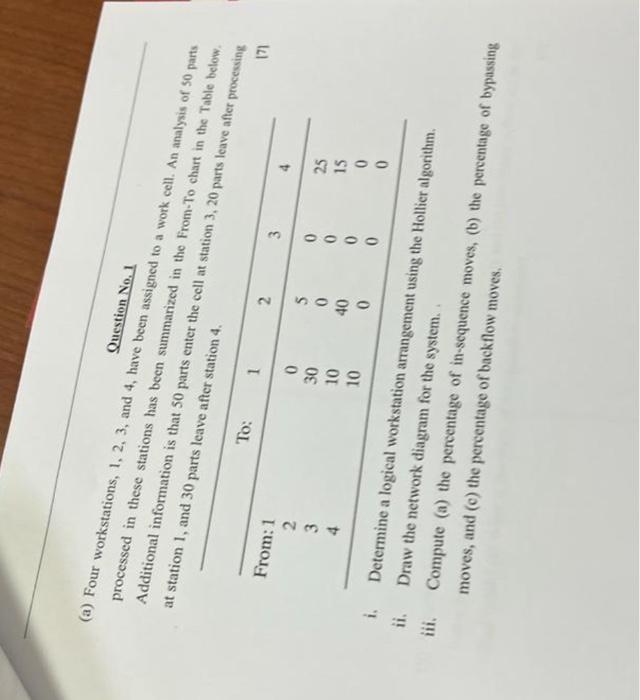

Question No 1 A Four Workstations 1 2 3 And 4 Have Been Assigned To A Work Cell An Analysis Of 50 Parts Process 1 (36.93 KiB) Viewed 30 times

Question No. 1 (a) Four workstations, 1, 2, 3, and 4, have been assigned to a work cell. An analysis of 50 parts processed in these stations has been summarized in the From-To chart in the Table below Additional information is that 50 parts enter the cell at station 3, 20 parts leave after processing at station 1, and 30 parts leave after station 4 To: 1 From: 1 2 171 3 4 2 3 4 0 30 10 10 5 0 40 0 0 0 0 0 25 15 0 0 i. ii. Determine a logical workstation arrangement using the Hollier algorithm Draw the network diagram for the system. Compute (a) the percentage of in-sequence moves, (b) the percentage of bypassing moves, and (c) the percentage of backflow moves
