6. A pressure versus volume (𝑝𝑉pV) diagram for a system is shown in the figure. The arrows of the curve indicate the dir

Post by answerhappygod »

6.

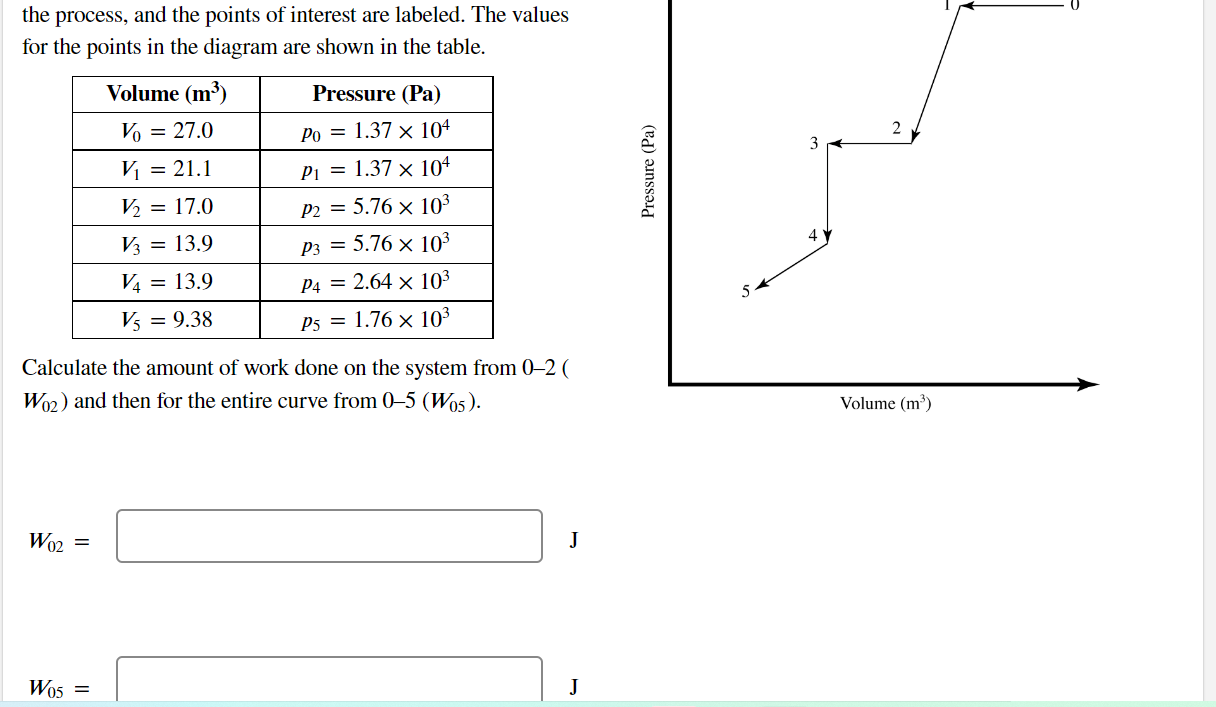

A pressure versus volume (𝑝𝑉pV) diagram for a system is shown inthe figure. The arrows of the curve indicate the direction of theprocess, and the points of interest are labeled. The values for thepoints in the diagram are shown in the table.
6 A Pressure Versus Volume Pvpv Diagram For A System Is Shown In The Figure The Arrows Of The Curve Indicate The Dir 1
6 A Pressure Versus Volume Pvpv Diagram For A System Is Shown In The Figure The Arrows Of The Curve Indicate The Dir 1 (69.81 KiB) Viewed 15 times
the process, and the points of interest are labeled. The values for the points in the diagram are shown in the table. W02 = Volume (m³) Vo = 27.0 V₁ = 21.1 V₂ = 17.0 V3 = 13.9 V4 = 13.9 V5 = 9.38 Calculate the amount of work done on the system from 0–2 ( W02) and then for the entire curve from 0-5 (W05). W05 = Pressure (Pa) Po=1.37 × 104 P₁ = 1.37 × 10ª P2 = 5.76 × 10³ P3 = 5.76 × 10³ P4 = 2.64 × 10³ P5 = 1.76 × 103 J J Pressure (Pa) S Volume (m³)
