The gauge pressure of water at A is 150.5 kPa. Water flows through the pipe at A with a velocity of 18 m/s, and out the

[answerhappygod]

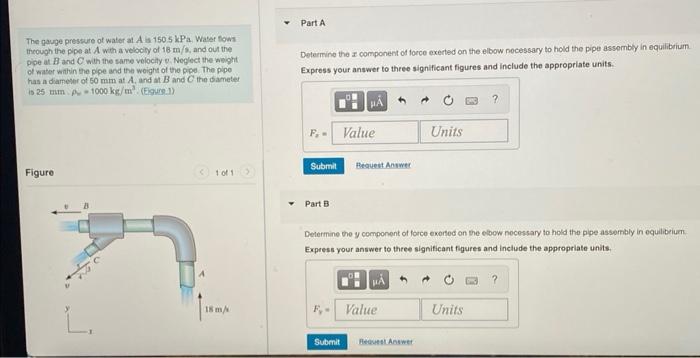

The Gauge Pressure Of Water At A Is 150 5 Kpa Water Flows Through The Pipe At A With A Velocity Of 18 M S And Out The 1 (27.57 KiB) Viewed 11 times

The gauge pressure of water at A is 150.5 kPa. Water flows through the pipe at A with a velocity of 18 m/s, and out the pipe at B and C with the same velocity . Neglect the weight of water within the pipe and the weight of the pipe. The pipe has a diameter of 50 mm at A, and at B and C the diameter is 25 mm. p-1000 kg/m². (Eigure 1) Figure 1 of 1 > 18 m/ Part A Determine the component of force exerted on the elbow necessary to hold the pipe assembly in equilibrium Express your answer to three significant figures and include the appropriate units. F₁- Submit Part B Value Request Answer Submit F, Value Determine they component of force exerted on the elbow necessary to hold the pipe assembly in equilibrium Express your answer to three significant figures and include the appropriate units. HÅ Units Request Answer ? Units
