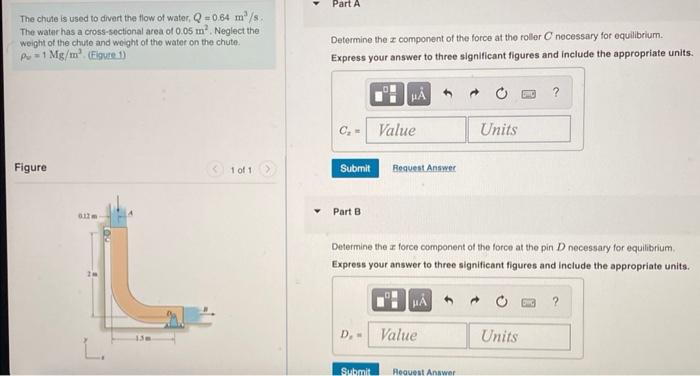

The chute is used to divert the flow of water, Q=0.64 m³/s. The water has a cross-sectional area of 0.05 m². Neglect the weight of the chute and weight of the water on the chute. P=1 Mg/m³ (Figure 1) Figure 612 m 1 of 1 Part A Determine the component of the force at the roller C necessary for equilibrium. Express your answer to three significant figures and include the appropriate units. HÅ C₂ = Submit Part B D₁- Value Submit Request Answer Determine the force component of the force at the pin D necessary for equilibrium. Express your answer to three significant figures and include the appropriate units. HÁ Value Units Request Answer DC Units

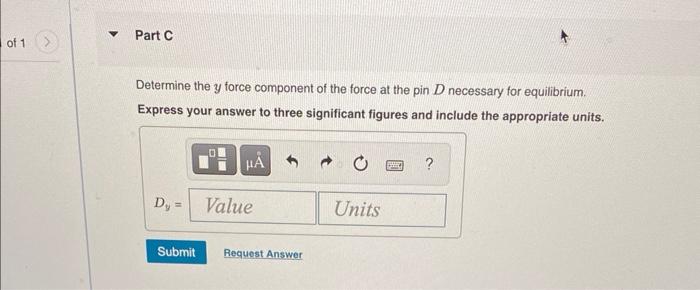

of 1 ▼ Part C Determine the y force component of the force at the pin D necessary for equilibrium. Express your answer to three significant figures and include the appropriate units. Dy = HA Value Submit Request Answer Units ?
