Q3. A horizontal force Pi = 600 N and vertical force P2 = 800 N are applied to end D of lever ABD. Determine (a) stresse

[answerhappygod]

Q3 A Horizontal Force Pi 600 N And Vertical Force P2 800 N Are Applied To End D Of Lever Abd Determine A Stresse 1 (50.68 KiB) Viewed 38 times

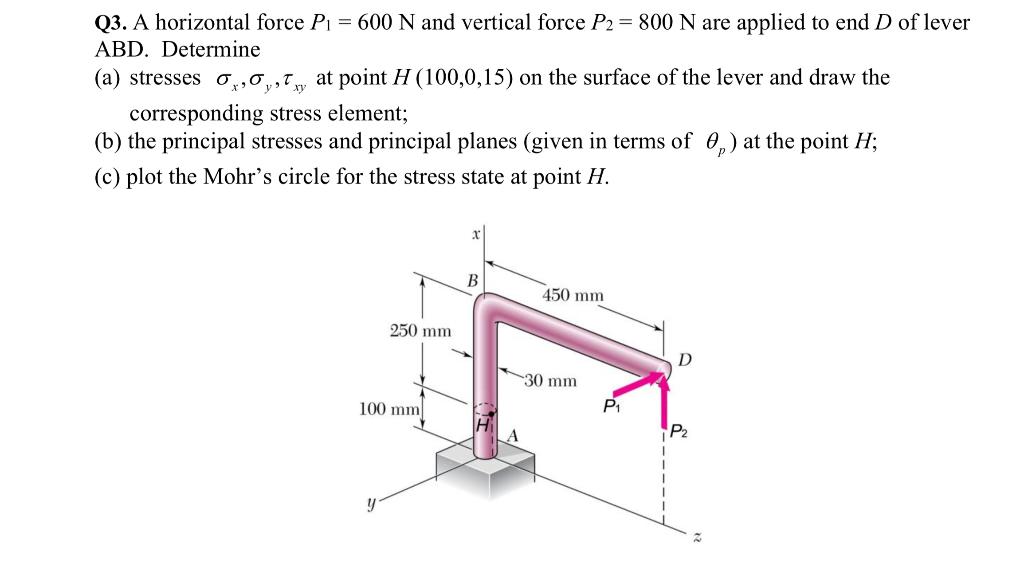

Q3. A horizontal force Pi = 600 N and vertical force P2 = 800 N are applied to end D of lever ABD. Determine (a) stresses 0/0,,Ty, at point H (100,0,15) on the surface of the lever and draw the corresponding stress element; (b) the principal stresses and principal planes (given in terms of (n) at the point H; (c) plot the Mohr's circle for the stress state at point H. B 450 mm 250 mm D 30 mm 100 mm P1 HI P2 4
