Question 1 (2.0/6) Tolerances and Fits: A bronze bushing, with an inside diameter of 76.2 + (Q/1200) mm and a nominal ou

[answerhappygod]

Question 1 2 0 6 Tolerances And Fits A Bronze Bushing With An Inside Diameter Of 76 2 Q 1200 Mm And A Nominal Ou 1 (488.51 KiB) Viewed 40 times

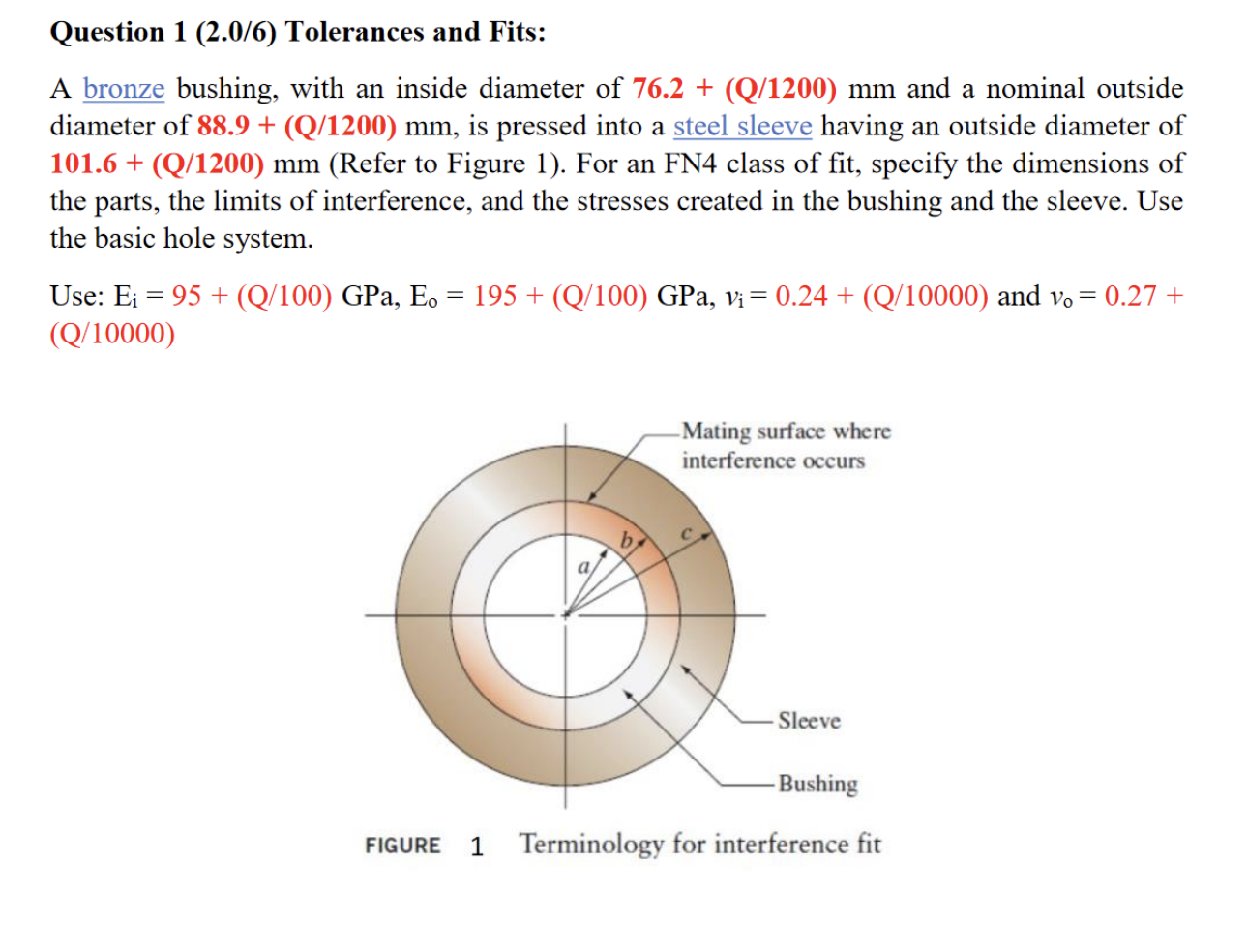

Question 1 (2.0/6) Tolerances and Fits: A bronze bushing, with an inside diameter of 76.2 + (Q/1200) mm and a nominal outside diameter of 88.9 + (Q/1200) mm, is pressed into a steel sleeve having an outside diameter of 101.6 + (Q/1200) mm (Refer to Figure 1). For an FN4 class of fit, specify the dimensions of the parts, the limits of interference, and the stresses created in the bushing and the sleeve. Use the basic hole system. Use: Ei = 95 + (Q/100) GPa, E. 195 + (Q/100) GPa, vi = 0.24 + (Q/10000) and v. = 0.27 + (Q/10000) = -Mating surface where interference occurs b Sleeve -Bushing FIGURE 1 Terminology for interference fit
