The pump (required NPSH=2 m) and the pump performance curve is shown below, transfer the water from point 1 to 2 with th

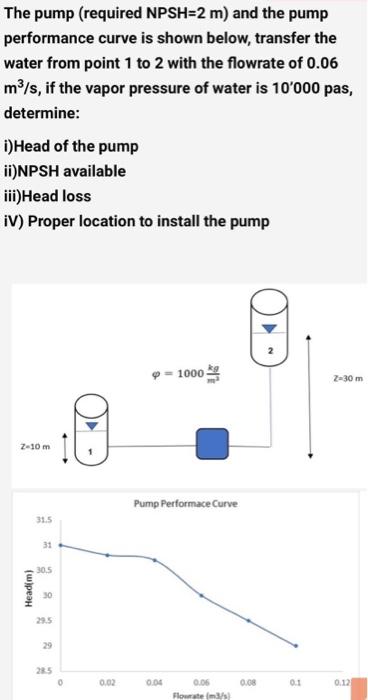

The pump (required NPSH=2 m) and the pump performance curve is shown below, transfer the water from point 1 to 2 with the flowrate of 0.06 m3/s, if the vapor pressure of water is 10'000 pas, determine: i) Head of the pump ii)NPSH available iii) Head loss iv) Proper location to install the pump 1000 16 2-30 m LO 2.10 m Pump Performace Curve 31.5 31 30.5 Headim) 30 29.5 235 0.02 0.04 0.08 0.1 0.12 0.00 Flowe
