Draw a curved arrow starting from the bond of resonance structure A that will form resonance structure B. Select Draw Ri

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Draw a curved arrow starting from the bond of resonance structure A that will form resonance structure B. Select Draw Ri

Post by answerhappygod »

Draw A Curved Arrow Starting From The Bond Of Resonance Structure A That Will Form Resonance Structure B Select Draw Ri 1
Draw A Curved Arrow Starting From The Bond Of Resonance Structure A That Will Form Resonance Structure B Select Draw Ri 1 (61.75 KiB) Viewed 29 times

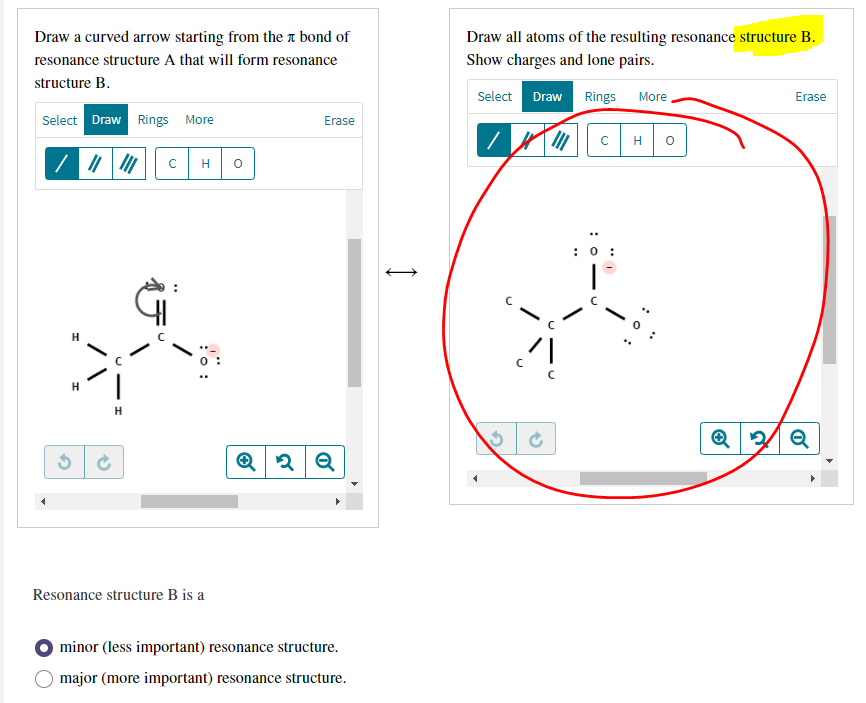

Draw a curved arrow starting from the bond of resonance structure A that will form resonance structure B. Select Draw Rings More / |||||| G H H C H O ifí Resonance structure B is a Erase Q minor (less important) resonance structure. major (more important) resonance structure. I Draw all atoms of the resulting resonance structure B. Show charges and lone pairs. Select Draw Rings More / III с с : 0: n I H 0 Erase Q2Q
