Consider the mechanism shown in the lecture notes on page 39. b=30 cm, c=35 cm. The distance between the two stationary

Post by answerhappygod »

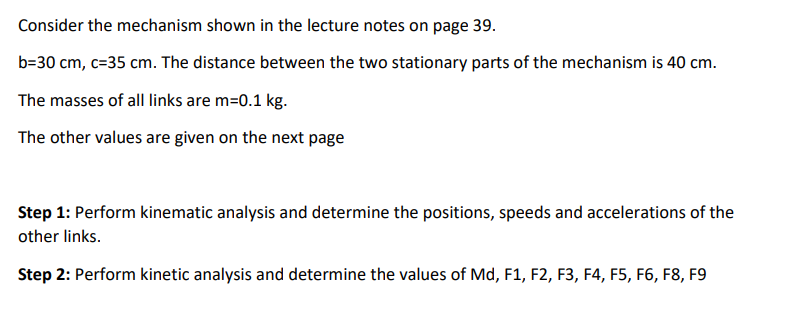

Consider The Mechanism Shown In The Lecture Notes On Page 39 B 30 Cm C 35 Cm The Distance Between The Two Stationary 1
Consider The Mechanism Shown In The Lecture Notes On Page 39 B 30 Cm C 35 Cm The Distance Between The Two Stationary 1 (48.16 KiB) Viewed 34 times
Consider the mechanism shown in the lecture notes on page 39. b=30 cm, c=35 cm. The distance between the two stationary parts of the mechanism is 40 cm. The masses of all links are m=0.1 kg. The other values are given on the next page Step 1: Perform kinematic analysis and determine the positions, speeds and accelerations of the other links. Step 2: Perform kinetic analysis and determine the values of Md, F1, F2, F3, F4, F5, F6, F8, F9
