Drag the correct statement onto the correct box below to show the steps in the method of joints for a 2-D truss correctl

Post by answerhappygod »

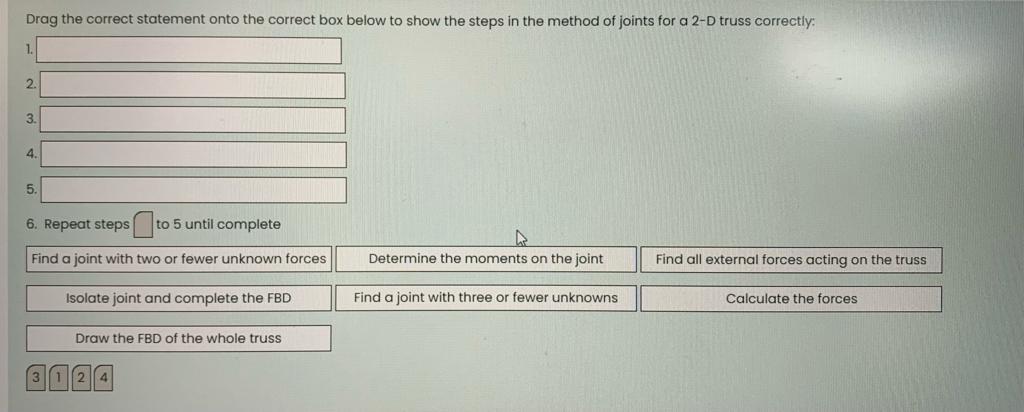

Drag The Correct Statement Onto The Correct Box Below To Show The Steps In The Method Of Joints For A 2 D Truss Correctl 1
Drag The Correct Statement Onto The Correct Box Below To Show The Steps In The Method Of Joints For A 2 D Truss Correctl 1 (51.51 KiB) Viewed 25 times
Drag the correct statement onto the correct box below to show the steps in the method of joints for a 2-D truss correctly: 2 3 4. 5. 6. Repeat steps to 5 until complete Find a joint with two or fewer unknown forces Determine the moments on the joint Find all external forces acting on the truss Isolate joint and complete the FBD Find a joint with three or fewer unknowns Calculate the forces Draw the FBD of the whole truss (12
