L 2) An I-Beam, W360x30 is loaded as shown below. The moment of inertia for the W 360x39 is 1 = 102.0x10m* and Young's M

Post by answerhappygod »

L 2 An I Beam W360x30 Is Loaded As Shown Below The Moment Of Inertia For The W 360x39 Is 1 102 0x10m And Young S M 1
L 2 An I Beam W360x30 Is Loaded As Shown Below The Moment Of Inertia For The W 360x39 Is 1 102 0x10m And Young S M 1 (26.18 KiB) Viewed 31 times

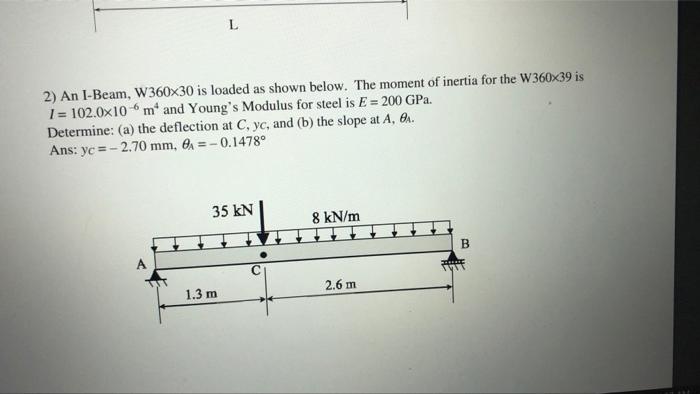

L 2) An I-Beam, W360x30 is loaded as shown below. The moment of inertia for the W 360x39 is 1 = 102.0x10m* and Young's Modulus for steel is E = 200 GPa. Determine: (a) the deflection at C, yc, and (b) the slope at A, A. Ans: yc = -2.70 mm, OA = -0.1478° 35 kN 8 kN/m B 2.6 m 1.3 m
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
