A centrifugal pump draws water from a well 3 m below its centreline through 7 m of 100 mm diameter pipe. It delivers fre

Post by answerhappygod »

A Centrifugal Pump Draws Water From A Well 3 M Below Its Centreline Through 7 M Of 100 Mm Diameter Pipe It Delivers Fre 1
A Centrifugal Pump Draws Water From A Well 3 M Below Its Centreline Through 7 M Of 100 Mm Diameter Pipe It Delivers Fre 1 (71.02 KiB) Viewed 37 times

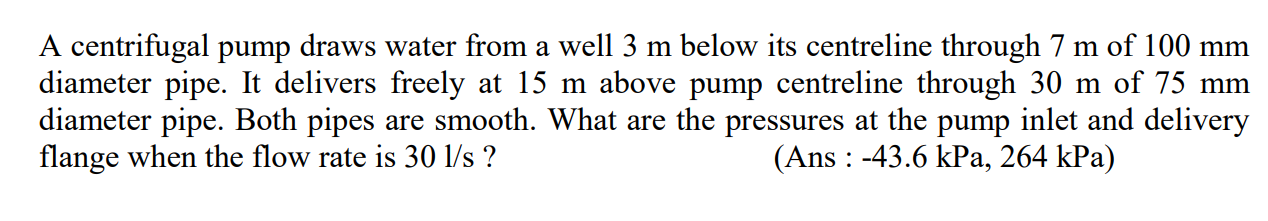

A centrifugal pump draws water from a well 3 m below its centreline through 7 m of 100 mm diameter pipe. It delivers freely at 15 m above pump centreline through 30 m of 75 mm diameter pipe. Both pipes are smooth. What are the pressures at the pump inlet and delivery flange when the flow rate is 30 1/s ? (Ans : -43.6 kPa, 264 kPa)
