QUESTION 3 (15 marks) Determine the displacement at point C, and the slope at the support A for (a) and (b) of the beams

Post by answerhappygod »

Question 3 15 Marks Determine The Displacement At Point C And The Slope At The Support A For A And B Of The Beams 1
Question 3 15 Marks Determine The Displacement At Point C And The Slope At The Support A For A And B Of The Beams 1 (24 KiB) Viewed 43 times
Question 3 15 Marks Determine The Displacement At Point C And The Slope At The Support A For A And B Of The Beams 2
Question 3 15 Marks Determine The Displacement At Point C And The Slope At The Support A For A And B Of The Beams 2 (22.09 KiB) Viewed 43 times
solve this asap please its just b only

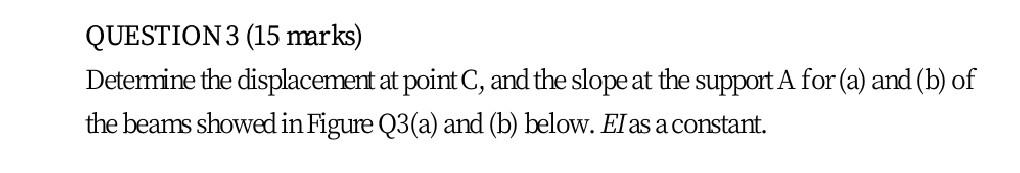

QUESTION 3 (15 marks) Determine the displacement at point C, and the slope at the support A for (a) and (b) of the beams showed in Figure Q3(a) and (b) below. Elas a constant.

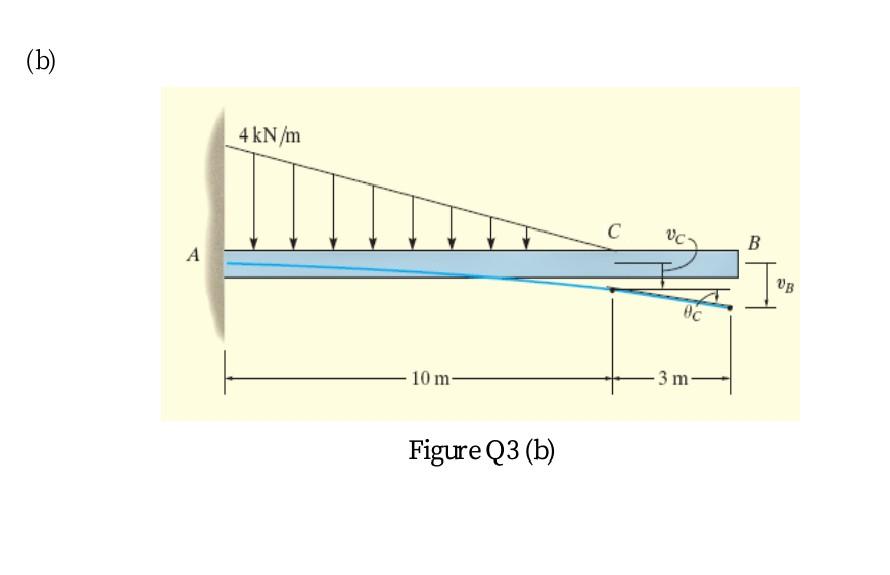

(b) 4 kN/m 4 с B А UB oc - 10 m 3 m Figure Q3 (b)
