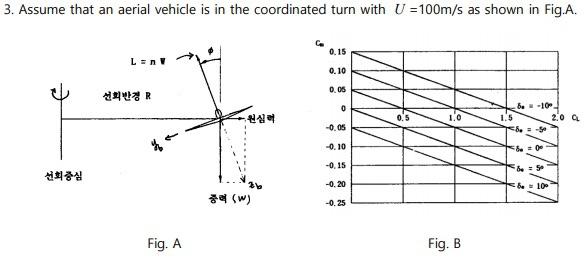

3. Assume that an aerial vehicle is in the coordinated turn with U = 100m/s as shown in Fig.A. 0.15 Lan! 0.10 0.05 선회반경 R 0 원심력 6.-10 1.5 20 0 So - - -0.05 -0.10 1 0 = 5 선회 중심 -0.15 -0.20 be 10 중력 (1) -0.25 Fig. A Fig. B

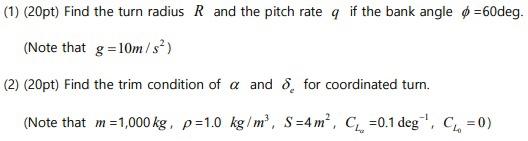

(1) (20pt) Find the turn radius R and the pitch rate q if the bank angle =60deg. (Note that g=10m/s) (2) (20pt) Find the trim condition of a and for coordinated turn. (Note that m=1,000 kg, p=1.0 kg/m°, S =4m², C =0.1 deg'. Con=0)
