H Question2: (20 Points) In the structure shown a load of P = 55-kips is applied parallel to the x-axis passing through

[answerhappygod]

H Question2 20 Points In The Structure Shown A Load Of P 55 Kips Is Applied Parallel To The X Axis Passing Through 1 (132.87 KiB) Viewed 32 times

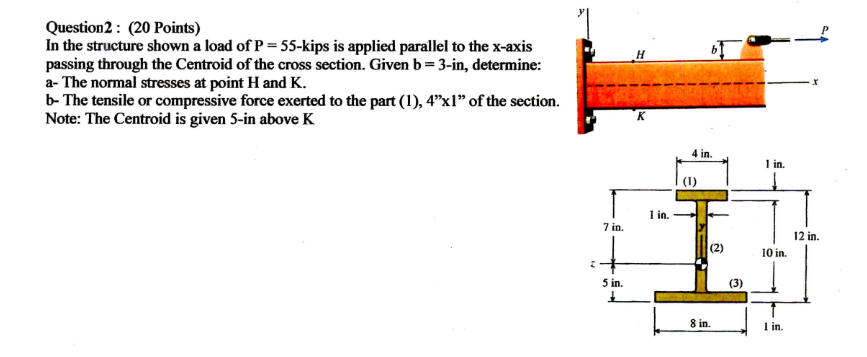

H Question2: (20 Points) In the structure shown a load of P = 55-kips is applied parallel to the x-axis passing through the Centroid of the cross section. Given b= 3-in, determine: a- The normal stresses at point H and K. b- The tensile or compressive force exerted to the part (1), 4"xl” of the section. Note: The Centroid is given 5-in above K . 4 in. 1 in. (1) 1 in. 7 in. 12 in. (2) 10 in. (3) 5 in. + 8 in. 1 in.
