An automotive-type clutch plate has inside and outside diameters of 160 mm and 240 mm, respectively. The clamping force

Post by answerhappygod »

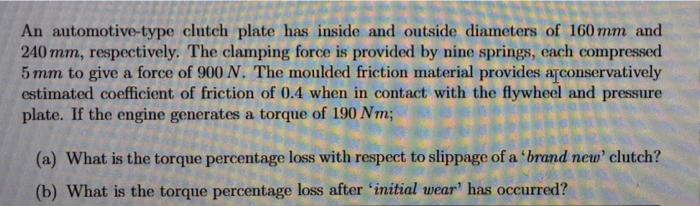

An Automotive Type Clutch Plate Has Inside And Outside Diameters Of 160 Mm And 240 Mm Respectively The Clamping Force 1
An Automotive Type Clutch Plate Has Inside And Outside Diameters Of 160 Mm And 240 Mm Respectively The Clamping Force 1 (34.4 KiB) Viewed 45 times
An automotive-type clutch plate has inside and outside diameters of 160 mm and 240 mm, respectively. The clamping force is provided by nine springs, each compressed 5 mm to give a force of 900 N. The moulded friction material provides a conservatively estimated coefficient of friction of 0.4 when in contact with the flywheel and pressure plate. If the engine generates a torque of 190 Nm; (a) What is the torque percentage loss with respect to slippage of a brand new' clutch? (b) What is the torque percentage loss after 'initial wear has occurred?
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
