Given that the force P is 40 N and applied at an angle of 11° to the horizontal to a block sliding in a groove at an ang

Post by answerhappygod »

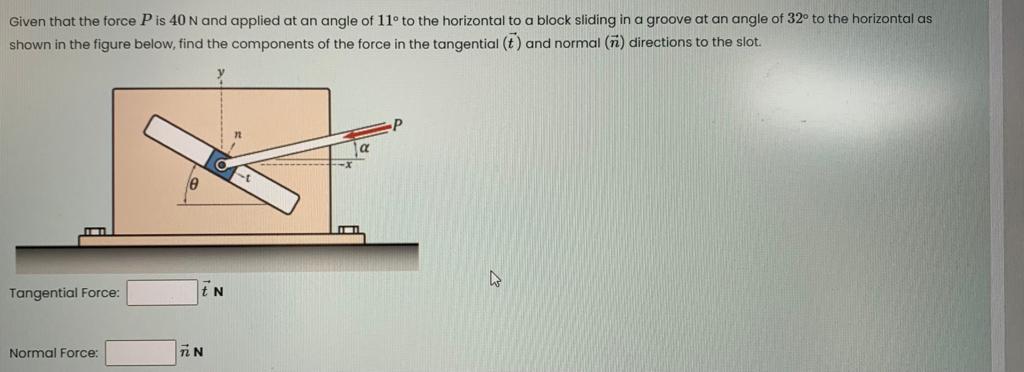

Given That The Force P Is 40 N And Applied At An Angle Of 11 To The Horizontal To A Block Sliding In A Groove At An Ang 1
Given That The Force P Is 40 N And Applied At An Angle Of 11 To The Horizontal To A Block Sliding In A Groove At An Ang 1 (44.77 KiB) Viewed 29 times
Given that the force P is 40 N and applied at an angle of 11° to the horizontal to a block sliding in a groove at an angle of 32° to the horizontal as shown in the figure below, find the components of the force in the tangential (t) and normal (n) directions to the slot. α Tangential Force: EN Normal Force: TN
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
