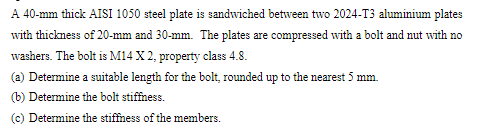

A 40-mm thick AISI 1050 steel plate is sandwiched between two 2024-T3 aluminium plates with thickness of 20-mm and 30-mm. The plates are compressed with a bolt and nut with no washers. The bolt is M14 X 2, property class 4.8. (a) Determine a suitable length for the bolt, rounded up to the nearest 5 mm. 6) Determine the bolt stiffness. ©) Determine the stiffness of the members.
