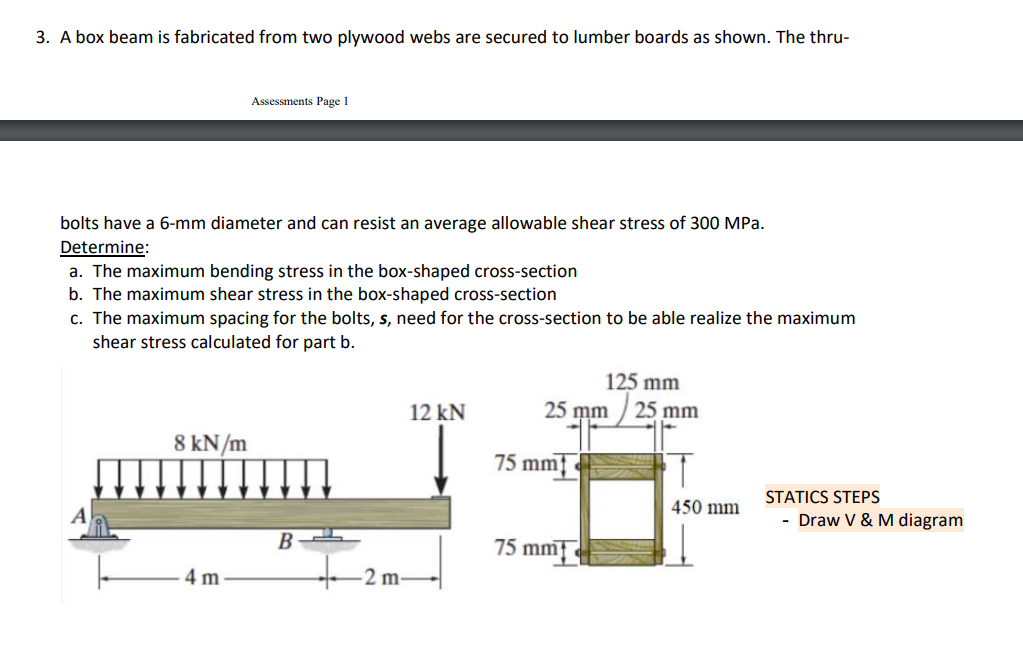

3. A box beam is fabricated from two plywood webs are secured to lumber boards as shown. The thru- Assessments Page 1 bolts have a 6-mm diameter and can resist an average allowable shear stress of 300 MPa. Determine: a. The maximum bending stress in the box-shaped cross-section b. The maximum shear stress in the box-shaped cross-section c. The maximum spacing for the bolts, s, need for the cross-section to be able realize the maximum shear stress calculated for part b. 125 mm 25 mm 25 mm 12 kN 8 kN/m 75 mm 450 mm STATICS STEPS - Draw V & M diagram B 75 mm 4 m 2 m
