2. A simply supported beam supports the loads shown. a. At section a-a, determine the bending stress and the shear stres

[answerhappygod]

2 A Simply Supported Beam Supports The Loads Shown A At Section A A Determine The Bending Stress And The Shear Stres 1 (80.43 KiB) Viewed 17 times

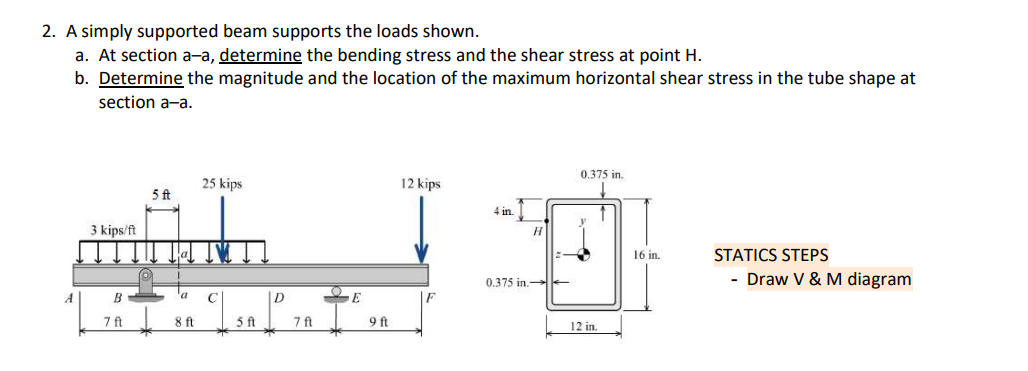

2. A simply supported beam supports the loads shown. a. At section a-a, determine the bending stress and the shear stress at point H. b. Determine the magnitude and the location of the maximum horizontal shear stress in the tube shape at section a-a. 0.375 in. 25 kips 12 kips 5ft 4 in. 1 3 kips/ft H 16 in. STATICS STEPS - Draw V&M diagram 0.375 in B 'a с D E F 7 ft 8 ft 5 ft 7 ft 9 ft 12 in.
