4. Figure 1 shows a wheel with two styles of lug wrench, a single end wrench in (a) and a double-ended wrench in (b) The

[answerhappygod]

4 Figure 1 Shows A Wheel With Two Styles Of Lug Wrench A Single End Wrench In A And A Double Ended Wrench In B The 1 (118.59 KiB) Viewed 25 times

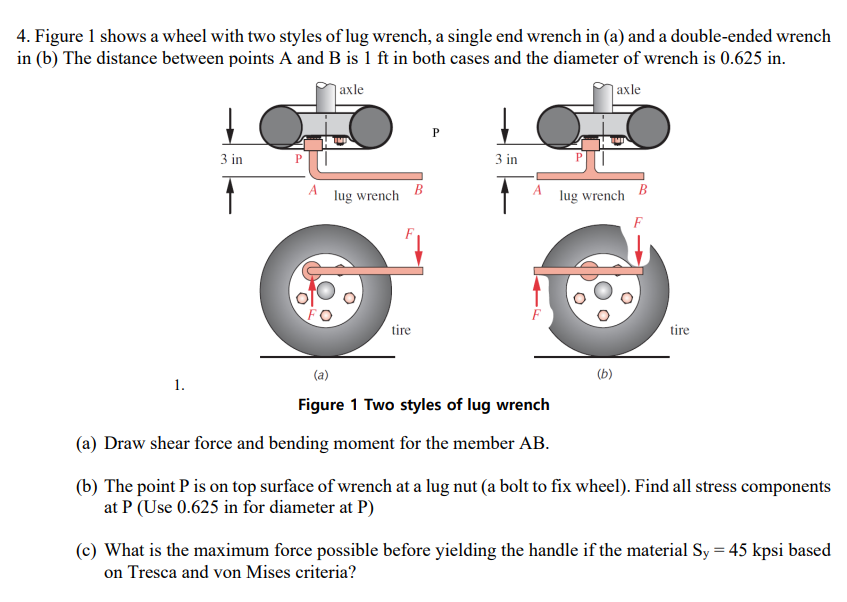

4. Figure 1 shows a wheel with two styles of lug wrench, a single end wrench in (a) and a double-ended wrench in (b) The distance between points A and B is 1 ft in both cases and the diameter of wrench is 0.625 in. axle axle Р 1 3 in 3 in A lug wrench B A lug wrench B F tire tire (b) (a) 1. Figure 1 Two styles of lug wrench (a) Draw shear force and bending moment for the member AB. (b) The point P is on top surface of wrench at a lug nut (a bolt to fix wheel). Find all stress components at P (Use 0.625 in for diameter at P) (c) What is the maximum force possible before yielding the handle if the material Sy = 45 kpsi based on Tresca and von Mises criteria?
