Part IV. Computational Questions (10'×2-20¹) 1. A CMOS inverter with minimum sized transistors has K. = 100 µA/V², K = 5

[answerhappygod]

Part Iv Computational Questions 10 2 20 1 A Cmos Inverter With Minimum Sized Transistors Has K 100 Ua V K 5 1 (24.08 KiB) Viewed 9 times

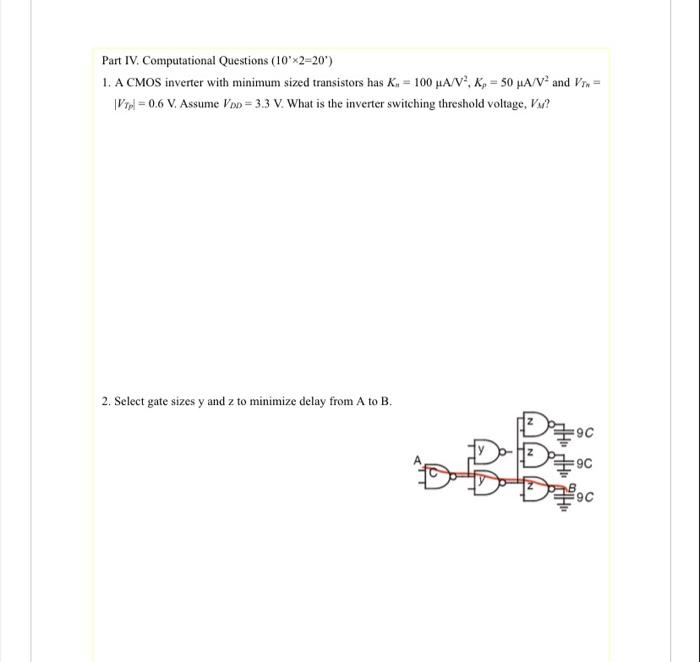

Part IV. Computational Questions (10'×2-20¹) 1. A CMOS inverter with minimum sized transistors has K. = 100 µA/V², K = 50 μA/V² and VTM = |VT|= 0.6 V. Assume Vpp = 3.3 V. What is the inverter switching threshold voltage, V? 2. Select gate sizes y and z to minimize delay from A to B. 9C Do 9c D⁹ =9C 79 9c
