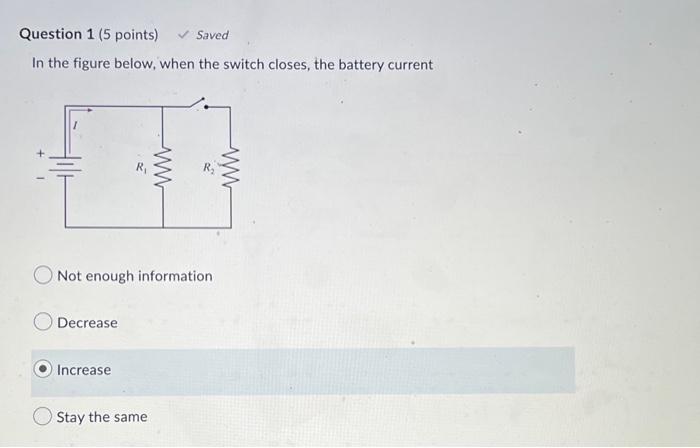

- Question 1 5 Points Saved In The Figure Below When The Switch Closes The Battery Current Decrease Not Enough Infor 1 (21.24 KiB) Viewed 11 times
- Question 1 5 Points Saved In The Figure Below When The Switch Closes The Battery Current Decrease Not Enough Infor 2 (36.46 KiB) Viewed 11 times
- Question 1 5 Points Saved In The Figure Below When The Switch Closes The Battery Current Decrease Not Enough Infor 3 (21.45 KiB) Viewed 11 times

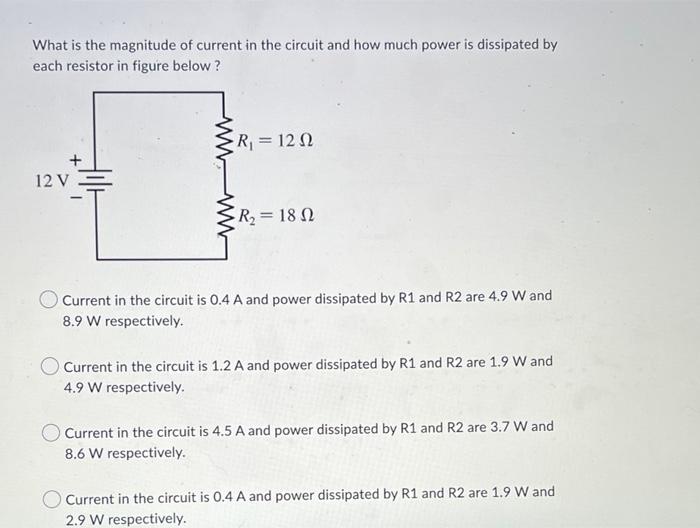

What is the magnitude of current in the circuit and how much power is dissipated by each resistor in figure below? 12 V Hill ww R₁ = 120 R₂ = 18 O Current in the circuit is 0.4 A and power dissipated by R1 and R2 are 4.9 W and 8.9 W respectively. Current in the circuit is 1.2 A and power dissipated by R1 and R2 are 1.9 W and 4.9 W respectively. Current in the circuit is 4.5 A and power dissipated by R1 and R2 are 3.7 W and 8.6 W respectively. O Current in the circuit is 0.4 A and power dissipated by R1 and R2 are 1.9 W and 2.9 W respectively.

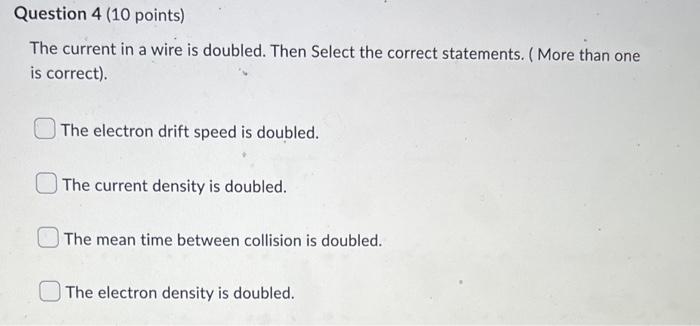

Question 4 (10 points) The current in a wire is doubled. Then Select the correct statements. (More than one is correct). The electron drift speed is doubled. The current density is doubled. The mean time between collision is doubled. The electron density is doubled.
