Consider the truss shown in. take F = 12.3. 4 kN 1.5 m 6 kN B H 1m F 2m 9 kN D 1.5 m 1.5 m- 1 m 1.5 m 6 kN E Determine t

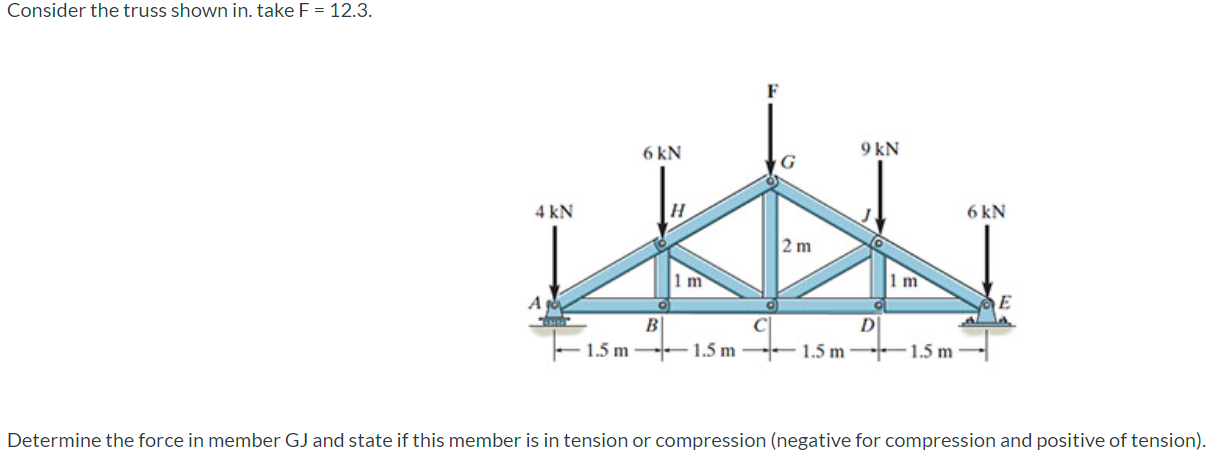

Consider the truss shown in. take F = 12.3. 4 kN 1.5 m 6 kN B H 1m F 2m 9 kN D 1.5 m 1.5 m- 1 m 1.5 m 6 kN E Determine the force in member GJ and state if this member is in tension or compression (negative for compression and positive of tension).
