[20 points] A single isolated point charge is carrying a charge q = 3 [nc]. As shown in the figure, two equipotential su

[answerhappygod]

20 Points A Single Isolated Point Charge Is Carrying A Charge Q 3 Nc As Shown In The Figure Two Equipotential Su 1 (82.8 KiB) Viewed 12 times

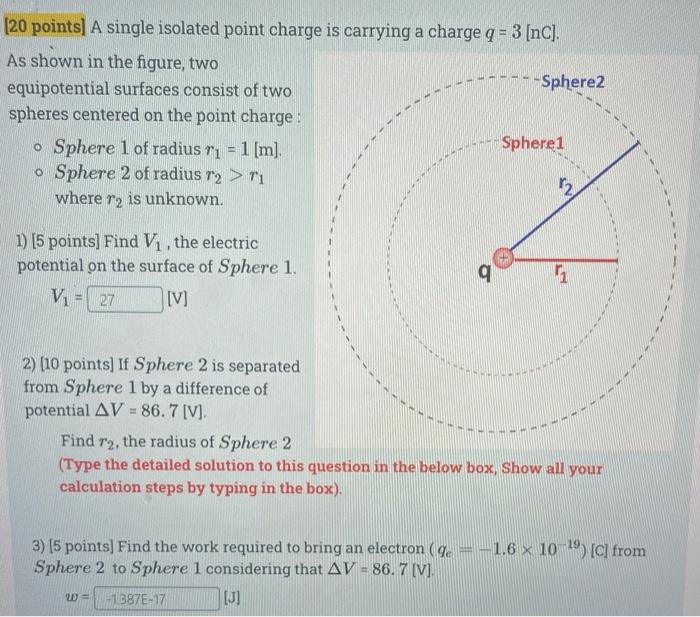

[20 points] A single isolated point charge is carrying a charge q = 3 [nc]. As shown in the figure, two equipotential surfaces consist of two spheres centered on the point charge: o Sphere 1 of radius r₁ = 1 [m]. oSphere 2 of radius 72 > 1 where 72 is unknown. 1) [5 points] Find V₁, the electric potential on the surface of Sphere 1. V₁ 27 [V] 2) [10 points] If Sphere 2 is separated from Sphere 1 by a difference of potential AV = 86.7 [V]. q --Sphere2 Sphere1 82 1 Find 72, the radius of Sphere 2 (Type the detailed solution to this question in the below box, Show all your calculation steps by typing in the box). 3) [5 points] Find the work required to bring an electron (qe = -1.6 x 10-19) [C] from Sphere 2 to Sphere 1 considering that AV = 86. 7 [V]. W= -1.387E-17 [J]
