Q1. The beam has a fixed support at A and is loaded by two forces and a couple. Determine the reactions at A. A₂ = 2.00

[answerhappygod]

Q1 The Beam Has A Fixed Support At A And Is Loaded By Two Forces And A Couple Determine The Reactions At A A 2 00 1 (36.33 KiB) Viewed 8 times

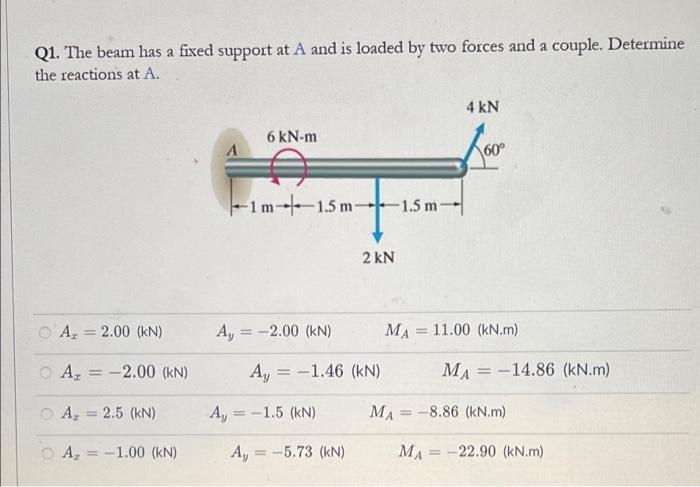

Q1. The beam has a fixed support at A and is loaded by two forces and a couple. Determine the reactions at A. A₂ = 2.00 (KN) A₂ = -2.00 (kN) OA, 2.5 (kN) OA, -1.00 (KN) 6 kN-m -1m-1.5 m 1.5 m- Ay = -2.00 (KN) Ay = -1.46 (kN) Ay = -1.5 (kN) 2 kN Ay = -5.73 (kN) 4 kN = MA 11.00 (kN.m) 60° ΜΑ = -14.86 (kN.m) MA-8.86 (kN.m) MA -22.90 (kN.m)
