Replace the loading acting on the beam shown in (Figure 1) by a single resultant force. Take F₁ = 550 N, F2=350 N, and F

[answerhappygod]

Replace The Loading Acting On The Beam Shown In Figure 1 By A Single Resultant Force Take F 550 N F2 350 N And F 1 (25.86 KiB) Viewed 10 times

Replace The Loading Acting On The Beam Shown In Figure 1 By A Single Resultant Force Take F 550 N F2 350 N And F 2 (60.17 KiB) Viewed 10 times

Replace The Loading Acting On The Beam Shown In Figure 1 By A Single Resultant Force Take F 550 N F2 350 N And F 3 (27.88 KiB) Viewed 10 times

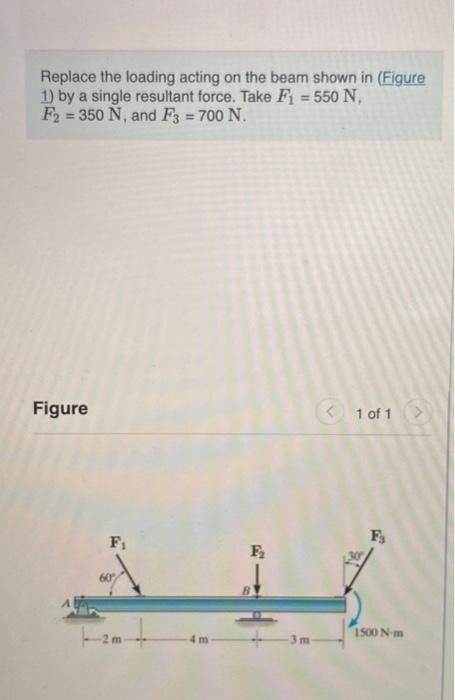

Replace the loading acting on the beam shown in (Figure 1) by a single resultant force. Take F₁ = 550 N, F2=350 N, and F3 = 700 N. Figure F₁ 60 4m F₂ < 1 of 1 F3 1500 N-m

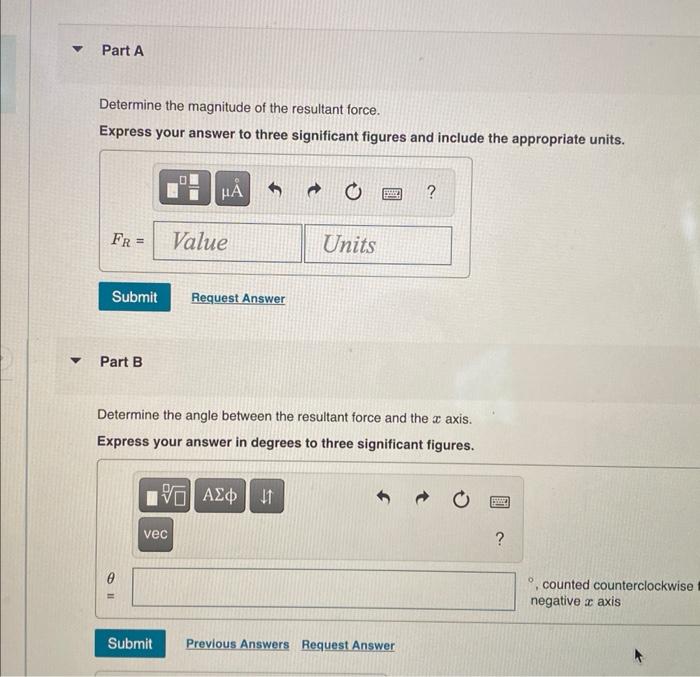

▼ Part A Determine the magnitude of the resultant force. Express your answer to three significant figures and include the appropriate units. FR= Value Submit Request Answer Part B 8 11 0 μÀ = Determine the angle between the resultant force and the axis. Express your answer in degrees to three significant figures. [Ε| ΑΣΦ | vec Subm Units SE ? Previous Answers Request Answer ? counted counterclockwise negative x axis

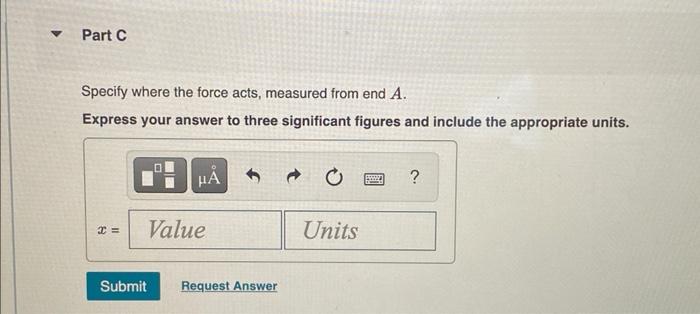

▼ Part C Specify where the force acts, measured from end A. Express your answer to three significant figures and include the appropriate units. x= 10 μA Value Submit Request Answer Units ww ?
