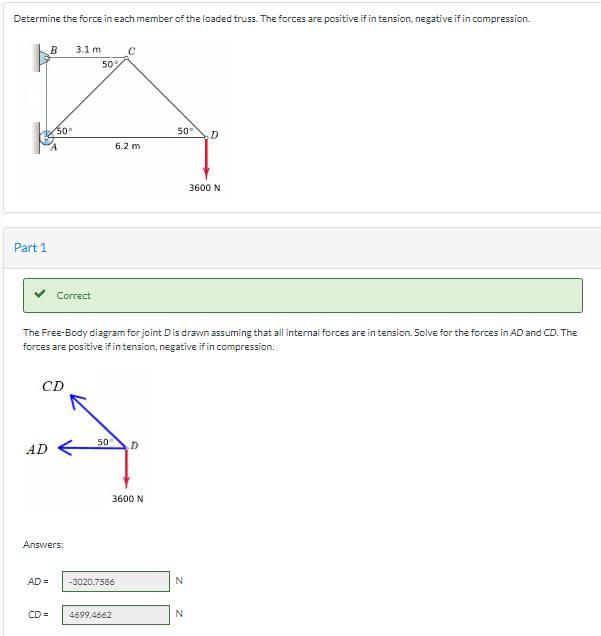

Determine the force in each member of the loaded truss. The forces are positive if in tension, negative if in compression. Part 1 B AD 50 CD AD= Correct Answers: CD= 3.1 m 50% The Free-Body diagram for joint Dis drawn assuming that all internal forces are in tension. Solve for the forces in AD and CD. The forces are positive if in tension, negative if in compression. с 6.2 m 50 D -3020.7586 4699.4662 3600 N 50% D N 3600 N N

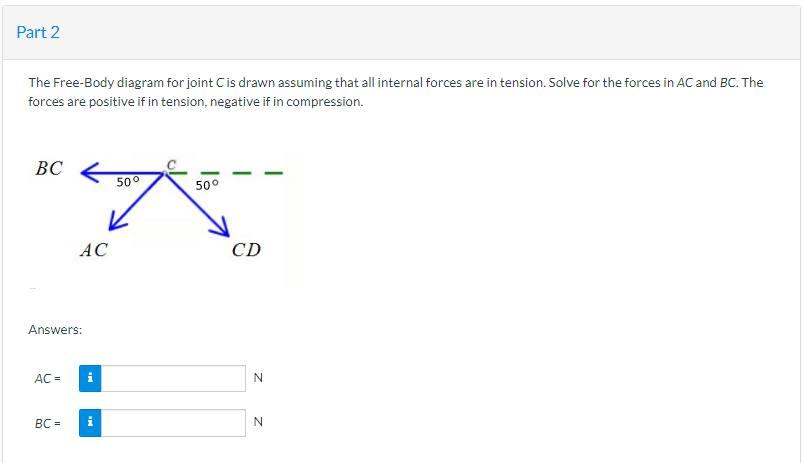

Part 2 The Free-Body diagram for joint C is drawn assuming that all internal forces are in tension. Solve for the forces in AC and BC. The forces are positive if in tension, negative if in compression. BC AC Answers: AC = BC = i 50° 50⁰ CD N N
