Three cables are being pulled by a 800 N force as shown in the figure Q1. 1.1) 1.2) 4 m X D 5 m 5 m 4 m Draw a free-body

Post by answerhappygod »

Three Cables Are Being Pulled By A 800 N Force As Shown In The Figure Q1 1 1 1 2 4 M X D 5 M 5 M 4 M Draw A Free Body 1
Three Cables Are Being Pulled By A 800 N Force As Shown In The Figure Q1 1 1 1 2 4 M X D 5 M 5 M 4 M Draw A Free Body 1 (34.37 KiB) Viewed 20 times

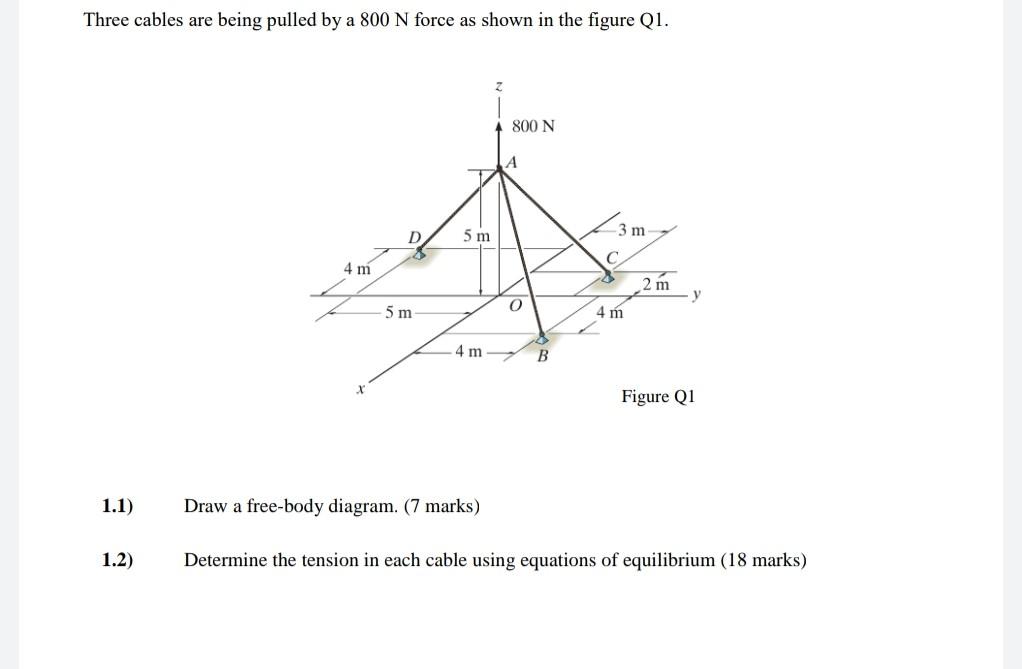

Three cables are being pulled by a 800 N force as shown in the figure Q1. 1.1) 1.2) 4 m X D 5 m 5 m 4 m Draw a free-body diagram. (7 marks) 800 N O B -3 m 4 m 2 m y Figure Q1 Determine the tension in each cable using equations of equilibrium (18 marks)
